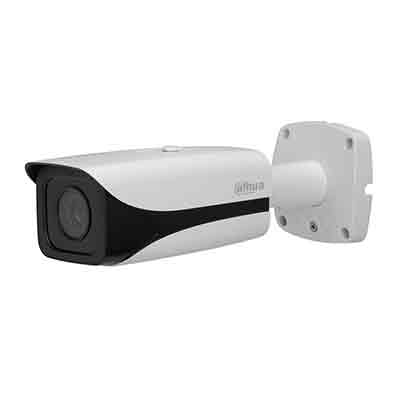

Dahua DH-IPC-HFW8301EP-Z 3Megapixel Full HD WDR Smart Network Motorized IR Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-IPC-HFW8301EP-Z
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
  • Resolution: 3MP
Read more
Additional info:

Dahua DH-IPC-HFW8301EP-Z is a 3MP full HD WDR smart network motorized IR camera featuring ultra 3D DNR and WDR, supports smart detection, face, intrusion and scene detection.

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-IPC-HFW8301EP-Z
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution 3MP
Digital (DSP) Yes
Specialist Type Megapixel
Auto Iris Yes
Electrical Specifications Voltage: 12 V DC
Power Consumption: 14.5 W
Motion Activated Yes
Focal Length mm 3 ~ 9
Wide Dynamic Range Yes
Picture Elements HxV 2048 x 1536
Network Properties Image Frame Rate: 30 fps
Interface: RJ-45 (10/100/1000Base-T)
Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 1/4 ~ 1/10000s
S/ N (Signal/ Noise) Ratio dB > 50
Compression Type H.264, MJPEG
Physical Specifications Weight g: 1,300
Dimensions mm: 273 x 95 x 95
Environmental Specifications Protection: IP66
Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F)
Operating Humidity %: 0 ~ 95
HD Yes
Additional info Dahua DH-IPC-HFW8301EP-Z is a 3MP full HD WDR smart network motorized IR camera featuring ultra 3D DNR and WDR, supports smart detection, face, intrusion and scene detection.
