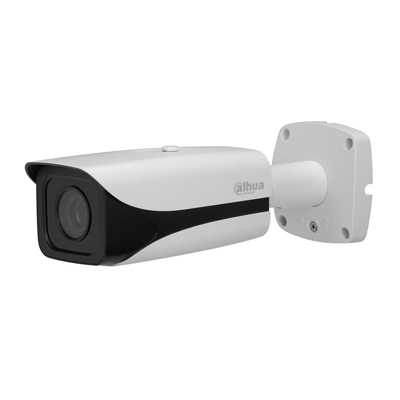

Dahua Technology DH-IPC-HFW8301EN-Z 1/3-inch Day/night 3MP Full HD Network IR Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-IPC-HFW8301EN-Z 1/3-inch Day/night 3MP Full HD Network IR Camera

Features:

Make: Dahua Technology
Model code: DH-IPC-HFW8301EN-Z
Series: Ultra-smart Series
Resolution: 3 MP
Digital (DSP): Yes

Additional info:

3 megapixel progressive scan Aptina CMOS Smart triple streams supported Ultra wide dynamic range up to 120db Ultra 3D DNR Smart detection Max. IR LEDs length 30m Micro SD memory

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	DH-IPC-HFW8301EN-Z
Resolution	3 MP
Digital (DSP)	Yes
Auto Iris	Yes
Electrical Specifications	Voltage: 12 V DC Power Consumption: <14.5 W
Focal Length mm	3 ~ 9
Wide Dynamic Range	Yes
Picture Elements HxV	2048 x 1536
Network Properties	Image Frame Rate: 30 fps Interface: RJ-45 (10/100/1000Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/4 ~ 1/10000s
S/ N (Signal/ Noise) Ratio dB	>50
Compression Type	H.264/MJPEG
Physical Specifications	Weight g: 1,300 Dimensions mm: 273 x 95 x 95
Environmental Specifications	Protection: IP66 Operating Temperature ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 0 ~ 95
HD	Yes
Additional info	3 megapixel progressive scan Aptina CMOS Smart triple streams supported Ultra wide dynamic range up to 120db Ultra 3D DNR Smart detection Max. IR LEDs length 30m Micro SD memory
