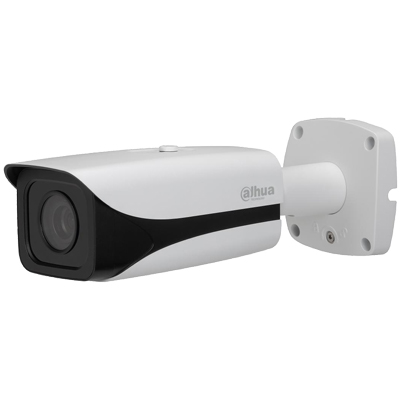

Dahua Technology DH-IPC-HFW5220E-Z 1/3-inch 2MP HD Network IR Bullet Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-IPC-HFW5220E-Z 1/3-inch 2MP HD Network IR Bullet Camera

Features:

Make: Dahua Technology
Model code: DH-IPC-HFW5220E-Z
Resolution: 2 MP
Digital (DSP): Yes
Auto Iris: Yes

Additional info:

2 megapixel progressive scan CMOS Support H.264&MJPEG dual codec Smart detection supported Max. IR LEDs length 50m Multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS Micro SD memory

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	DH-IPC-HFW5220E-Z
Resolution	2 MP
Digital (DSP)	Yes
Auto Iris	Yes
Electrical Specifications	Voltage: 12 V DC Power Consumption: <11.5 W
Focal Length mm	2.7 ~ 12
Wide Dynamic Range	Yes
Picture Elements HxV	1920 x 1080
Network Properties	Image Frame Rate: 30 fps Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/3(4) ~ 1/100000s
S/ N (Signal/ Noise) Ratio dB	>50
Compression Type	H.264/H.264H/H.264B/MJPEG
Physical Specifications	Weight g: 1,100 Dimensions mm: 273 x 95 x 95
Environmental Specifications	Protection: IP67 Operating Temperature ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 0 ~ 95
HD	Yes
Additional info	2 megapixel progressive scan CMOS Support H.264&MJPEG dual codec Smart detection supported Max. IR LEDs length 50m Multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS Micro SD memory
