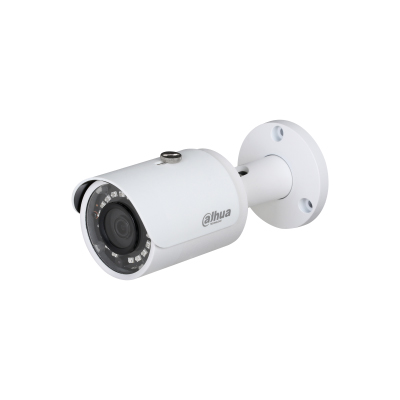

Dahua Technology DH-IPC-HFW4231S 2MP WDR IR Mini Bullet Network Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-IPC-HFW4231S
  • Series: Q74 Series
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
Read more
Additional info:

H. 265 & H.264 triple-stream encoding 50/60fps@1080P(1920×1080) Smart Detection supported WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 3.6mm fixed lens (6mm optional) Max. IR LEDs Length 30m IP67, PoE

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-IPC-HFW4231S
Series Q74 Series
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution 1080P
Digital (DSP) Yes
Specialist Type Megapixel
Sensitivity Lux 0.009 ~ 0
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: < 6W
Motion Activated Yes
Focal Length mm 3.6
Mount Type Pole
Wide Dynamic Range Yes
Picture Elements HxV 1920 x 1080
Network Properties Image Frame Rate: 50 / 60 fps
Interface: RJ-45 (10/100Base-T)
Network Protocols: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB > 50
Signal Mode PAL, NTSC
Mini or Compact Yes
Compression Type H.265+/H.265/H.264+/H.264
Physical Specifications Weight g: 380
Dimensions mm: 162 x 70 x 70
Environmental Specifications Protection: IP67
Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F)
Operating Humidity %: < 95
Additional info
  • H. 265 & H.264 triple-stream encoding
  • 50/60fps@1080P(1920×1080)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm fixed lens (6mm optional)
  • Max. IR LEDs Length 30m
  • IP67, PoE
