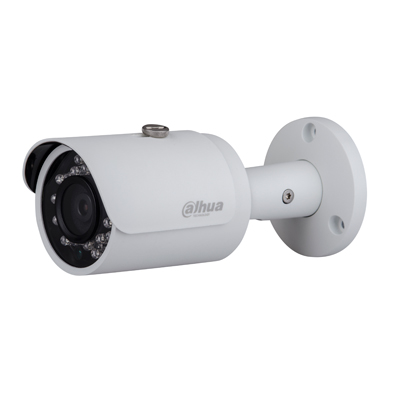

Dahua Technology DH-IPC-HFW4120S 1/3-inch Day/night 1.3MP HD Network IR Bullet Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-IPC-HFW4120S
  • Series: DLS-XC series
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
Read more
Additional info:

Dahua Technology DH-IPC-HFW4120S is a 1/3-inch day/night 1.3 MP HD network IR bullet camera with smart detection, multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS, max. IR LEDs length etc.

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-IPC-HFW4120S
Series DLS-XC series
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution 1.3 MP
Digital (DSP) Yes
Specialist Type Infrared
Electrical Specifications Voltage: 12 V DC
Power Consumption: <4.5 W
Focal Length mm 3.6
Wide Dynamic Range Yes
Picture Elements HxV 1280 x 960
Network Properties Image Frame Rate: 30 fps
Interface: RJ-45 (10/100Base-T)
Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 1/3(4) ~ 1/100000s
S/ N (Signal/ Noise) Ratio dB >50
Compression Type H.264/H.264B/H.264H/MJPEG
Physical Specifications Dimensions mm: 70 x 165
Weight g: 420
Environmental Specifications Protection: IP67
Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F)
Operating Humidity %: 0 ~ 95
HD Yes
Additional info

Dahua Technology DH-IPC-HFW4120S is a 1/3-inch day/night 1.3 MP HD network IR bullet camera with smart detection, multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS, max. IR LEDs length etc.
