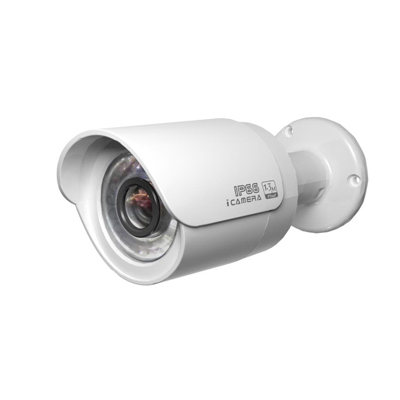

Dahua 1.3 Megapixel HD Network Mini IR-Bullet Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-IPC-HFW2100P
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
  • Resolution: 1280 × 960
Read more
Additional info:

Dahua DH-IPC-HFW2100P HD network mini IR-bullet camera

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-IPC-HFW2100P
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution 1280 × 960
Specialist Type Infrared
Sensitivity Lux 0. 1
Electrical Specifications Voltage: 12VDC
Power Consumption: <6W
Focal Length mm 6
Picture Elements HxV 1280 × 960
Network Properties Image Frame Rate: 30
Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 1/3 ~ 1/10000s
S/ N (Signal/ Noise) Ratio dB >50
Compression Type H.264 / MJPEG
Physical Specifications Weight g: 370
Dimensions mm: 64.43 × 145.02
Environmental Specifications Operating Temperature oC: -10 ~ +60
Protection: IP66
Operating Humidity %: 10 ~ 90
HD Yes
Additional info Dahua DH-IPC-HFW2100P HD network mini IR-bullet camera
