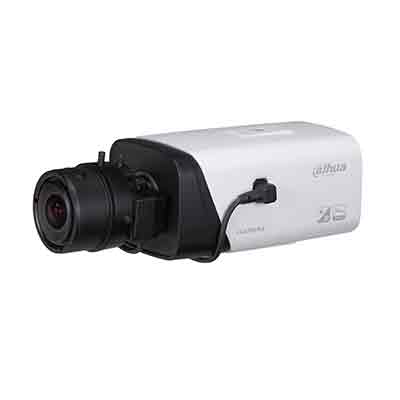

Dahua DH-IPC-HF81200EP 12 Megapixel Ultra HD Network Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-IPC-HF81200EP
  • Chip Inch Size: 1/2
  • Color Type: Color / Monochrome
  • Resolution: 12 MP
Read more
Additional info:

DH-IPC-HF81200EP is an IP camera featuring 1/2.3" 12 Megapixel progressive scan CMOS, ultra display performance and decoding ability, as well as supporting smart triple streams.

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-IPC-HF81200EP
Chip Inch Size 1/2
Color Type Color / Monochrome
Resolution 12 MP
Digital (DSP) Yes
Specialist Type Megapixel
Sensitivity Lux 0.001
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 12 V DC
Power Consumption: 12 W
Lens Mount C/CS
Wide Dynamic Range Yes
Picture Elements HxV 4000 x 3000
Network Properties Image Frame Rate: 15 fps
Interface: RJ-45 (10/100/1000Base-T)
Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 1/3 ~ 1/10000s
S/ N (Signal/ Noise) Ratio dB > 50
Y/ C (Video Output) 1 channel BNC?1.0Vp-p,75??
Compression Type H.264/MJPEG
Physical Specifications Dimensions mm: 74 x 65 x 135
Weight g: 300
Environmental Specifications Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F)
Operating Humidity %: 0 ~ 95
Additional info DH-IPC-HF81200EP is an IP camera featuring 1/2.3" 12 Megapixel progressive scan CMOS, ultra display performance and decoding ability, as well as supporting smart triple streams.
