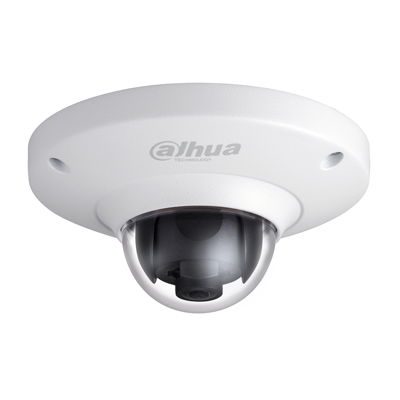

Dahua Technology DH-IPC-EB5400-M 4 Megapixel Network Fisheye Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-IPC-EB5400-M 4 Megapixel Network Fisheye Camera

Features:

Make: Dahua Technology
Model code: DH-IPC-EB5400-M
Resolution: 4 MP
Digital (DSP): Yes
Sensitivity Lux: 0.01

Additional info:

4 megapixel progressive scan CMOS H.264 & MJPEG dual-stream encoding Multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS 1.18mm fixed lens Micro SD memory

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	DH-IPC-EB5400-M
Resolution	4 MP
Digital (DSP)	Yes
Sensitivity Lux	0.01
Electrical Specifications	Voltage: 12 V DC Power Consumption: 6 W
Focal Length mm	1.18
Wide Dynamic Range	Yes
Picture Elements HxV	2592 x 1520
Network Properties	Image Frame Rate: 30 fps Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/3(4) ~ 1/10000s
S/ N (Signal/ Noise) Ratio dB	>50
Compression Type	H.264/MJPEG
Physical Specifications	Weight g: 250 Dimensions mm: 110 x 54
Environmental Specifications	Protection: IK10 Operating Temperature ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 0 ~ 95
Additional info	4 megapixel progressive scan CMOS H.264 & MJPEG dual-stream encoding Multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS 1.18mm fixed lens Micro SD memory
