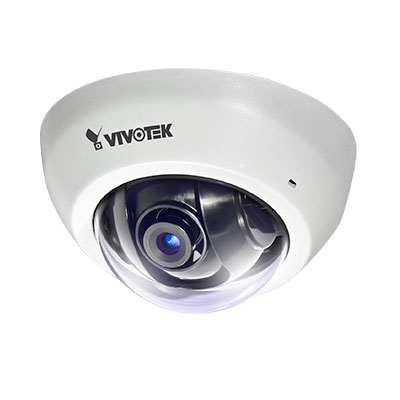

VIVOTEK FD8166 world's smallest network fixed dome camera

Technical Specification

Features:

Make: VIVOTEK
Model code: FD8166
Chip Inch Size: 1/3
Resolution TVL: 1920 x 1080
Sensitivity lux: 0.24

Additional info:

VIVOTEK FD8166 is the world's smallest network fixed dome camera. With installation as easy as one-two-three and Power over Ethernet (PoE) functionality, set up time is completed in less than 120 seconds, making installation quick and easy.

Contact manufacturer Contact manufacturer

Make	VIVOTEK
Manufacturer	VIVOTEK
Category	Video Surveillance>IP Dome cameras
Model code	FD8166
Chip Inch Size	1/3
Resolution TVL	1920 x 1080
Sensitivity lux	0.24
Focal length	3.6 mm
Compression	H.264, MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/5 sec ~ 1/32,000 sec
S/ N (Signal/ Noise) Ratio dB	53
Built-in IR LED	Yes
Network Properties	Interface: 10Base-T/100 BaseTX Ethernet Network Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP
Electrical Specifications	Power Consumption: 2.9 W
Physical Specifications	Dimensions mm: 90 x 55 Weight g: 144
Environmental Specifications	Operating Temp ^oC: 0 ~ +50
System Requirements	Operating System: Microsoft Windows 7/Vista/XP/2000 Web Browser: Mozilla Firefox 7~10 (streaming only) Internet Explorer 7.x or 8.x
Additional info	VIVOTEK FD8166 is the world's smallest network fixed dome camera. With installation as easy as one-two-three and Power over Ethernet (PoE) functionality, set up time is completed in less than 120 seconds, making installation quick and easy.
