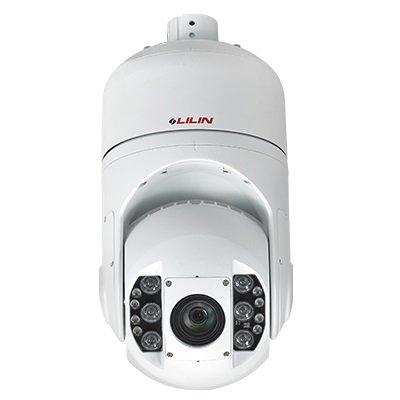

Lilin PSR5528X25-C 25X 1080P Day & Night 60 FPS IR Vandal Resistant PTZ IP Camera

Technical Specification

Features:

Make: LILIN
Model code: PSR5528X25-C
Chip Inch Size: 1/2.8
Color Type: Color / Monochrome
Resolution: 2MP

Additional info:

25X Optical Zoom Lens(4.7 – 117.5mm) 16X Digital Zoom Day & Night (IR cut removable) Full HD 2.14 megapixel CMOS image sensor 60 FPS @ 1080P True H.264 AVC High Profile video compression Support auto tracking IVS supported Alarm(1 – 4) / Motion / Tamper / Audio / Network loss detection Smart event support 200-metre infrared night vision Up to 256 Programmable Preset Positions 2-way audio supported ONVIF supported RS-485 supported Weatherproof IP66 Vandal resistant approve IK10 Rain repellent glass NEMA 4X certified

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	LILIN
Manufacturer	LILIN
Category	Video Surveillance>IP cameras
Model code	PSR5528X25-C
Chip Inch Size	1/2.8
Color Type	Color / Monochrome
Resolution	2MP
Digital (DSP)	Yes
Specialist Type	Megapixel
Sensitivity Lux	0.5
Auto Iris	Yes
Direct Drive	Yes
Electrical Specifications	Voltage: 100 ~ 240 V AC Power Consumption: 85 W
Motion Activated	Yes
High Speed	Yes
Focal Length mm	4.7 ~ 117.5
Wide Dynamic Range	Yes
Picture Elements HxV	1920 × 1080
Network Properties	Image Frame Rate: 25 ~ 60 fps Interface: 10/100Mbps Base-T, RJ-45 Network Protocols: IPv4, IPv6, TCP, UDP, HTTP, SMTP, QoS, SNMP, SNMP Trap, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SIP, Bonjour, 802.1x
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/30(25) ~ 1/10,000
S/ N (Signal/ Noise) Ratio dB	50
Y/ C (Video Output)	CVBS 1.0Vp-p, 75 ohm
Compression Type	H.265, H.264, MJPEG
Physical Specifications	Dimensions mm: 395 x 198 Weight g: 6,000
Environmental Specifications	Protection: IP66, IK10 Operating Temperature ^oC: -40 ~ 50 C (-40 ~ 122 F) Operating Humidity %: 0 ~ 90
System Requirements	Operating System: Windows 7 or above Web Browser: Microsoft® Internet Explorer® 9 or above
HD	Yes
Additional info	25X Optical Zoom Lens(4.7 – 117.5mm) 16X Digital Zoom Day & Night (IR cut removable) Full HD 2.14 megapixel CMOS image sensor 60 FPS @ 1080P True H.264 AVC High Profile video compression Support auto tracking IVS supported Alarm(1 – 4) / Motion / Tamper / Audio / Network loss detection Smart event support 200-metre infrared night vision Up to 256 Programmable Preset Positions 2-way audio supported ONVIF supported RS-485 supported Weatherproof IP66 Vandal resistant approve IK10 Rain repellent glass NEMA 4X certified
