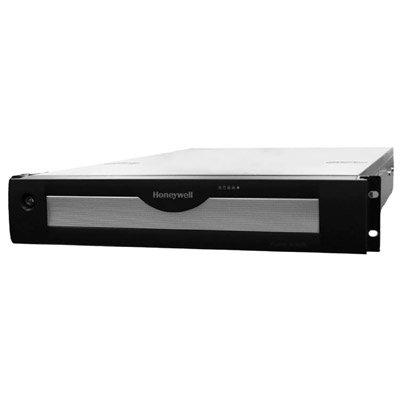

Honeywell Security HNMSE48C08T 48 Channels 8 TB Network Video Recorder

Technical Specification

Features:
Read more
Additional info:

Supports simultaneous recording, live monitoring, search and system management for 48 IP cameras including high definition formats Internal storage capacity of 8TB (2 x 4 TB) 1 solid state drive with operating system and 2 removable bays Provides the processor and storage enclosure in one chassis Multi-stream support with maximum 128 streams per MAXPRO NVR SE. Support for configuring 1 preferred stream for continuous recording and 1 preferred stream for live video / motion based recording per camera Supports One-Way Audio (for specific IP cameras) with live, playback and clip export on desktop clients for 48 IP channels Includes HDMI, DVI-D and DVI-I ports for dual monitor support Allows local or remote operations including live and recorded video monitoring, configuration and system management in a single desktop client interface Includes dual 1 GB Network ports optimized to separate record and viewing data to ensure 100% recording and smooth playback even with multiple client connections Easy to use desktop clients, web client and mobile apps Intelligence events from cameras can be viewed at the alarm panel, and trigger recording on MAXPRO NVR for further investigation Integrates to full line of Honeywell IP cameras and HVE encoders Support for ONVIF Profile S, PSIA, real time streaming protocol (RTSP) standards Native device integrations supporting equIP® Series cameras’ new features: 4K resolution, H.265 video compression codec, 3D PTZ control, 360° camera and intelligence events Multiple MAXPRO NVRs deployed for system expansion using a distributed architecture and integrated with the MAXPRO Viewer multisite software or MAXPRO VMS enterprise video management system

Read more
Make Honeywell Security
Manufacturer Honeywell
Category Video Surveillance>Network Video Recorders (NVRs)
Model code HNMSE48C08T
Series MAXPRO® NVR SE (Standard Edition)
Recording Mode Real Time / Event
Video inputs 48
Software solution Yes
Hardware solution Yes
Inbuilt multiplexer Yes
Type of multiplexer functions Simultaneous Live, Recording, Playback, Archive
Recording system HDD
Storage capacity 8 TB
Secondary storage USB, DVD R/W
Storage rate 1920 fps @ 4CIF/VGA or 1920 fps @ 720p HD or 1280 fps @ 1080p HD
Resolution 4CIF/VGA; 720p; 1080p
Video motion detection Yes
Client Server NVR Application Yes
Expandable to multi NVRs Yes
Direct client image streaming Yes
Multiple client support Yes
Multiple NVR support Yes
Operating system Windows 10 IoT Enterprise for Embedded Systems
Electrical Specifications Voltage: 100 ~ 240 V
Power consumption (W): 500 W
Physical Specifications Weight (kg): 19.5
Dimensions (mm): 437 x 88 x 660
Environmental Specifications Operating temperature (°C): 5 ~ 40 C (40 ~ 104 F)
Additional info
  • Supports simultaneous recording, live monitoring, search and system management for 48 IP cameras including high definition formats
  • Internal storage capacity of 8TB (2 x 4 TB)
  • 1 solid state drive with operating system and 2 removable bays
  • Provides the processor and storage enclosure in one chassis
  • Multi-stream support with maximum 128 streams per MAXPRO NVR SE. Support for configuring 1 preferred stream for continuous recording and 1 preferred stream for live video / motion based recording per camera
  • Supports One-Way Audio (for specific IP cameras) with live, playback and clip export on desktop clients for 48 IP channels
  • Includes HDMI, DVI-D and DVI-I ports for dual monitor support
  • Allows local or remote operations including live and recorded video monitoring, configuration and system management in a single desktop client interface
  • Includes dual 1 GB Network ports optimized to separate record and viewing data to ensure 100% recording and smooth playback even with multiple client connections
  • Easy to use desktop clients, web client and mobile apps
  • Intelligence events from cameras can be viewed at the alarm panel, and trigger recording on MAXPRO NVR for further investigation
  • Integrates to full line of Honeywell IP cameras and HVE encoders
  • Support for ONVIF Profile S, PSIA, real time streaming protocol (RTSP) standards
  • Native device integrations supporting equIP® Series cameras’ new features: 4K resolution, H.265 video compression codec, 3D PTZ control, 360° camera and intelligence events
  • Multiple MAXPRO NVRs deployed for system expansion using a distributed architecture and integrated with the MAXPRO Viewer multisite software or MAXPRO VMS enterprise video management system
