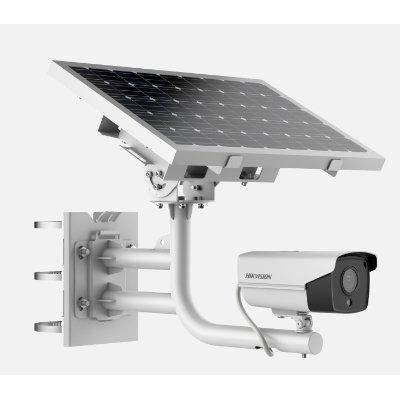

Hikvision 4G Solar Kit For Remote Security

Technical Specification

Features:
  • Make: Hikvision
  • Model code: DS-2XS6A25G0-I/CH20S40
  • Chip Inch Size: 1/2.8
  • Color Type: Color / Monochrome
  • Resolution: 1920 x 1080
Read more
Additional info:

High quality imaging with 2 MP(1920 × 1080 @30 fps) resolution Clear imaging against strong back light due to 120 dB true WDR technology The camera battery can work up to seven days in rainy or cloudy days if it is fully charged 40 W photovoltaic panel, 20 Ah chargeable lithium battery Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card Camera: Water and dust resistant (IP67)

Read more
Make Hikvision
Manufacturer Hikvision USA Inc.
Model code DS-2XS6A25G0-I/CH20S40
Chip Inch Size 1/2.8
Color Type Color / Monochrome
Resolution 1920 x 1080
Sensitivity Lux 0 ~ 0.004
Electrical Specifications Voltage: 12 V DC
Power Consumption: 1.76 W (4G transmission is excluded, 50% illumination).
Motion Activated Yes
Focal Length mm 2.8 mm / 4 mm / 8 mm
Wide Dynamic Range Yes
Network Properties Image Frame Rate: 25 ~ 30 fps
Interface: RJ45 10M/100M self-adaptive Ethernet port
Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 1 s ~ 1/100,000 s
S/ N (Signal/ Noise) Ratio dB ≥52
Compression Type H.265+/H.265/H.264+/ H.264/MJPEG
Physical Specifications Weight g: 12964
Dimensions mm: 760 × 732.6 × 586.9
Environmental Specifications Operating Temperature oC: -5 ~ +60 C (23 ~ 140 F)
Protection: IP67
Operating Humidity %: <95
System Requirements Web Browser: IE8+, Chrome 57.0+, Firefox 52.0+, Safari 11+, Chrome 41.0+, Firefox 30.0+
Additional info
  • High quality imaging with 2 MP(1920 × 1080 @30 fps) resolution
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • The camera battery can work up to seven days in rainy or cloudy days if it is fully charged
  • 40 W photovoltaic panel, 20 Ah chargeable lithium battery
  • Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
  • LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
  • Camera: Water and dust resistant (IP67)
