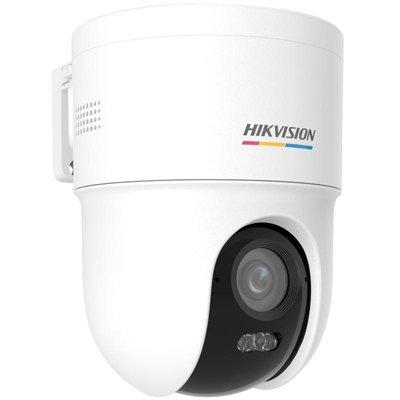

Hikvision 4MP ColorVu 3.0 Fixed PT Network Camera
Technical Specification
- Make: Hikvision
- Model code: DS-2CD1F47G3H-LIUF
- Series: Hikvision Value Series
- Chip Inch Size: 1/1.8
- Color Type: Color / Monochrome
Auto Tracking: person tracking automatically based on Motion Detection 3.0 HikAI-ISP for excellent noise reduction effect Super clear 24/7 colorful imaging with ColorVu 3.0 technology Motion Detection 3.0, more accurate on person and vehicle classification -F: Support on-board storage up to 512 GB (SD card slot) Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes Dust and water resistant (IP66)
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision USA Inc. |
| Category | Video Surveillance>IP cameras |
| Model code | DS-2CD1F47G3H-LIUF |
| Series | Hikvision Value Series |
| Chip Inch Size | 1/1.8 |
| Color Type | Color / Monochrome |
| Resolution | 4 MP |
| Sensitivity Lux | Color: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: max. 10 W (12 VDC) / max. 12 W (PoE) |
| Motion Activated | Yes |
| Focal Length mm | 2.8 mm, 4mm |
| Wide Dynamic Range | Yes |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1 s ~ 1/100,000 s |
| S/ N (Signal/ Noise) Ratio dB | ≥ 52 dB |
| Compression Type | H.265+/H.265/H.264+/H.264/MJPEG |
| Network Properties |
Interface: RJ45 10 M/100 M self-adaptive Ethernet port Network Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP |
| Physical Specifications |
Dimensions mm: Ø110.8 x 145.4 Weight g: 650 g |
| Environmental Specifications |
Protection: IP66 Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: ≤ 95 |
| System Requirements | Web Browser: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
Product description
Hikvision DS-2CD1F47G3H-LIUF: 4 MP ColorVu 3.0 Fixed PT Network Camera
The Hikvision DS-2CD1F47G3H-LIUF combines advanced security technology within a compact design, making it an ideal choice for professional surveillance systems. Featuring a high-sensitivity 1/1.8" Progressive Scan CMOS sensor, this camera delivers a maximum resolution of 2560 × 1440, ensuring crystal-clear images regardless of lighting conditions.
Key Features
- ColorVu 3.0 Technology: Experience vivid, colourful imaging all day and night, enhancing visibility and object recognition.
- Intelligent Auto Tracking: Utilises Motion Detection 3.0 for precise tracking of persons and vehicles, maximising security coverage with minimal manual intervention.
- HikAI-ISP: Delivers excellent noise reduction for superior image clarity.
- Smart Hybrid Light: Integrates IR and white lights with three supplementary lighting modes for adaptable illumination up to 30m.
- Expandable Storage: On-board storage supports SD cards up to 512GB.
- Durability: Designed with an IP66-rated enclosure, offering dust and water resistance for reliable outdoor usage.
Ideal Use Cases
Offering seamless integration into robust security infrastructures, this network camera excels in urban environments, commercial facilities, and other high-traffic areas requiring continuous, detailed monitoring. Its comprehensive feature set makes it suitable for diverse applications where high-resolution and adaptive illumination are crucial.
