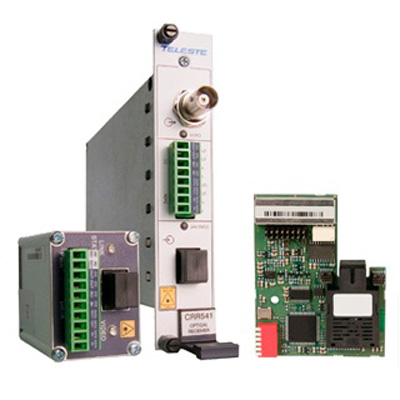

Teleste CFO541 Single Channel Video Link
Technical Specification
Features:
- Make: Teleste
- Model code: CFO541
- Video Inputs: 1
- Data Input: Yes
- Bandwidth MHz: 5.5
Additional info:
CFO541 video link is capable of proving an optical transmission for a composite video, one serial data and one contact closure type I/O channel. Data and CC communication is 2-way. Data channel is configurable to various RS modes by DIP switches.
Read more| Make | Teleste |
|---|---|
| Manufacturer | Teleste Corporation |
| Category | Video Surveillance>Video servers (IP transmission) |
| Model code | CFO541 |
| Video Inputs | 1 |
| Data Input | Yes |
| Bandwidth MHz | 5.5 |
| Physical Specifications |
Dimensions mm: 3 x 5 x 190 Weight g: 500 |
| Electrical Specifications |
Power Consumption: 250 mA Voltage: 10.5 ~ 14 V DC |
| Environmental Specifications |
Operating Temperature oC: -34 ~ +74 C (-29.2 ~ +165.2 F) Operating Humidity %: 0 ~ 95 |
| Video Inputs Overview | BNC female |
| Additional info | CFO541 video link is capable of proving an optical transmission for a composite video, one serial data and one contact closure type I/O channel. Data and CC communication is 2-way. Data channel is configurable to various RS modes by DIP switches. |
