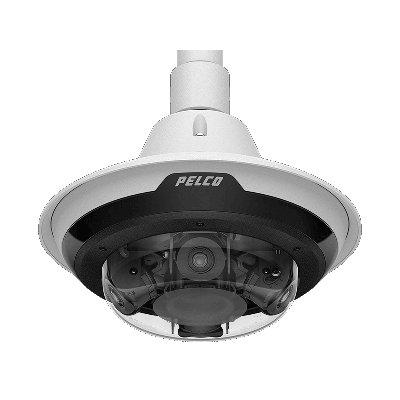

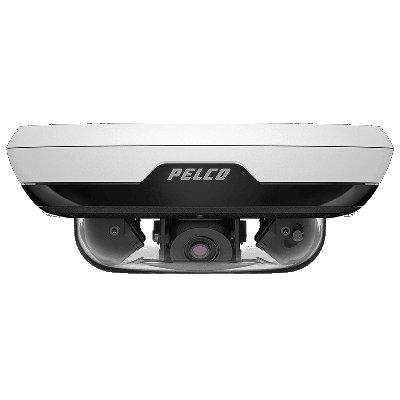

Pelco Sarix® Multi Pro Camera series

Product Profile

Protect your communities with Pelco’s Sarix Multi Pro camera, offering multi-directional coverage from a single vantage point. This flexible video security solution is easy-to-install and delivers high-resolution images across all lighting conditions.

Flexible Configurations for Wide Area Coverage - Provides multiple areas of coverage from a single vantage point, requiring fewer cameras

Lower Overall Deployment Costs - Save on installation time and costs with a single mounting point, cable, and VMS license

Adaptive IR Technology Option - Provides security detail in total darkness even as objects approach the camera

Pelco Smart Compression Technology - Reduce bandwidth and storage needs without compromising image quality

SureVision Technology - SureVision technology ensures strong low-light performance

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Technical Specification

Make	Pelco
Manufacturer	Pelco, Inc
Category	Video Surveillance>IP cameras
Model code	IMD9118
Chip Inch Size	1/2.8
Resolution	3x3 MP
Sensitivity Lux	0.025
Electrical Specifications	Voltage: 24 V DC, 24 V AC, PoE+ Power Consumption: 26 W (24 VDC)
Motion Activated	Yes
Focal Length mm	4 mm
Mount Type	Surface, Pendant, In-ceiling
Wide Dynamic Range	Yes
Network Properties	Image Frame Rate: 25/30 fps Interface: RJ-45, Gigabit Ethernet, 100BASE-TX, 1000BASE-TX Network Protocols: IPv4, IPv6, HTTP, HTTPS, SOAP, DNS, NPT, RTSP, RTCP, RTP, TCP, UDP, IGMPv2, ICMP, DHCP, Zeroconf, ARP, HSTS
Back Light Compensation	Yes
White Balance	Yes
Electronic Shutter Range	1/8 to 1/8000 sec
Compression Type	H.264 Pelco Smart Compression, H.265 Pelco Smart Compression, Motion JPEG
Physical Specifications	Weight g: 1550 Dimensions mm: 298 x 161
Environmental Specifications	Operating Temperature ^oC: -10 ~ +50 C (14 ~ +122 F) Operating Humidity %: 0 ~ 95
Additional info	SureVision 2.0 delivers excellent low-light and True Wide Dynamic Range performance Adaptive IR technology extracts security detail in scenes with no light Captures details in very bright and dark areas to maximize image quality Pelco Smart Compression reduces bandwidth and storage needs Rated IK10 for vandal resistance and IP66/67 for water resistance, enabling indoor and outdoor use Is ONVIF Profile S, G and T compliant
