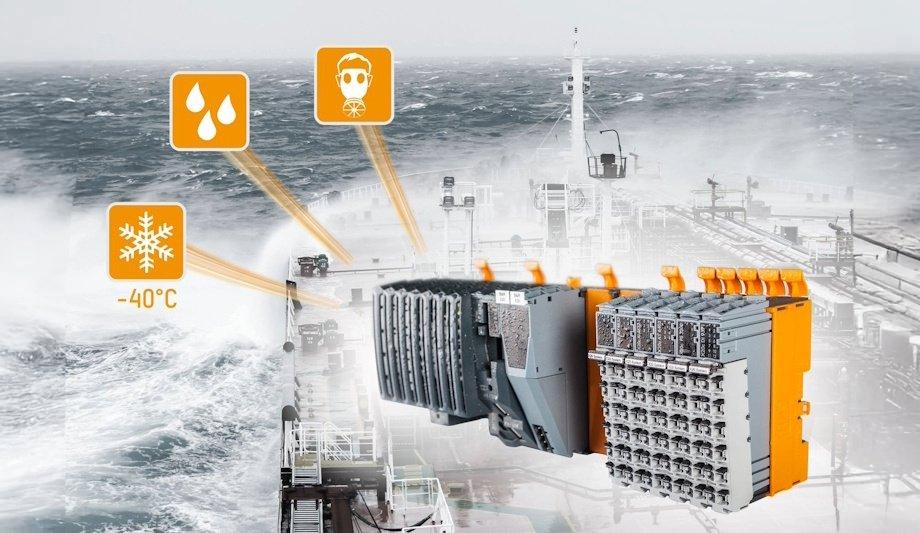

The B&R X20 control and I/O system has enhanced its flexibility in maritime environments through new certifications from notable organizations, such as Det Norske Veritas (DNV), the Korean Register (KR), Lloyd's Register (LR), and the American Bureau of Shipping (ABS).
These advancements, along with widened temperature and input voltage ranges, enhance the system's adaptability and robustness in challenging conditions at sea.
Strengthened Certifications for Maritime Use
The demanding nature of maritime environments necessitates rigorous testing of automation components
The demanding nature of maritime environments necessitates rigorous testing of automation components. The recent acquisition of type examination certificates from DNV, KR, LR, and ABS confirms the X20 control and I/O system’s durability in such settings.
These certifications validate the system’s resilience to intense maritime conditions, ensuring reliability where it is most needed.
Adaptation to Extreme Temperatures
The coated versions of X20 components now boast an expanded operational temperature range, enabling them to function efficiently at temperatures as low as −40°C. This advancement allows for their usage in environments, such as cold storage facilities and polar regions.
The X20's coated modules are essentially standard units with specially coated circuit boards to protect against condensation, harmful gases, and other environmental factors.
Enhanced Input Voltage Range
An increased input voltage range significantly improves the X20 system's deployment in maritime settings. The system now supports a 24 VDC power supply that can handle deviations from −25% to +30%, equating to a voltage tolerance range of 18 to 31.2 VDC.
This feature simplifies the power distribution process onboard ships, accommodating voltage drops over extensive cable networks without necessitating additional distributed power supplies.
