LILIN LR7228X Day/Night 2MP HD Vari-focal IR IP Camera
Technical Specification
| Make | LILIN |
|---|---|
| Manufacturer | LILIN |
| Category | Video Surveillance>IP cameras |
| Model code | LR7228X |
| Chip Inch Size | 1/3 |
| Color Type | Color / Monochrome |
| Resolution | 2 MP |
| Digital (DSP) | Yes |
| Specialist Type | Infrared |
| Electrical Specifications |
Voltage: 24 V AC Power Consumption: 17W |
| Motion Activated | Yes |
| Focal Length mm | 3.3 ~ 12 |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 1920 x 1080 |
| Network Properties |
Image Frame Rate: 15 fps Interface: RJ-45, 100Mbps Base-T Network Protocols: IP, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF, SNMP |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1/30s – 1/8000s |
| S/ N (Signal/ Noise) Ratio dB | 36 |
| Zoom | Yes |
| Y/ C (Video Output) | 1.0Vp-p, 75 ohm, BNC connector |
| Compression Type | H.264 , Motion JPEG |
| Physical Specifications |
Weight g: 2,200 Dimensions mm: 124 x 113 x 310 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +50 C (-40 ~ +122 F) Protection: IP66 |
| System Requirements |
Operating System: Embedded Linux 2.6.32 Web Browser: Windows Internet Explorer 6.0 or above |
| HD | Yes |
| Additional info | LILIN LR7228X is a day/night 2MP HD vari-focal IR IP camera featuring 3D noise reduction, high efficiency IR LED, and 2-way audio. |

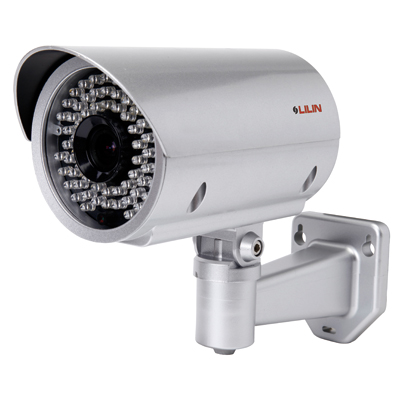

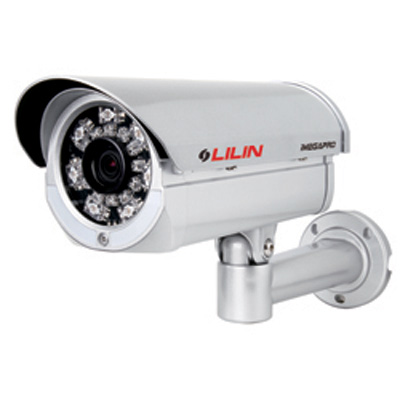

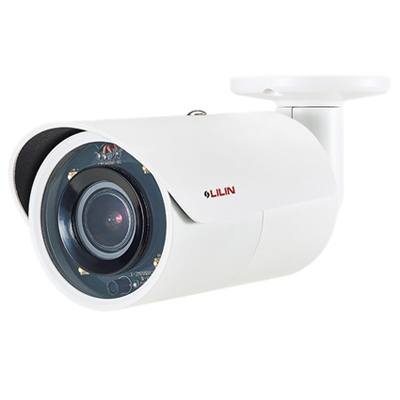

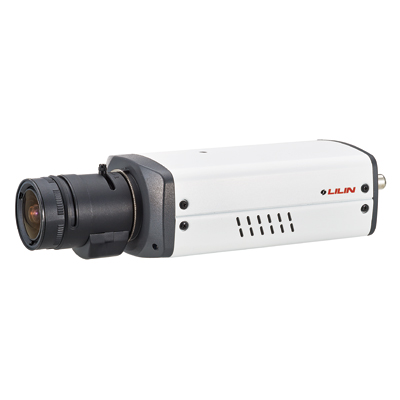

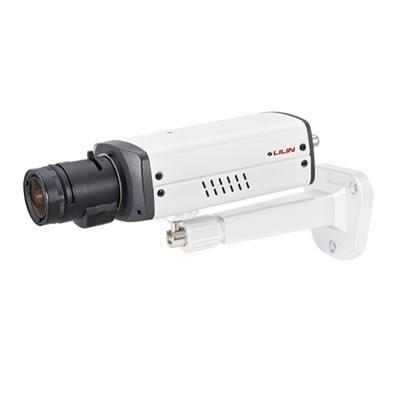

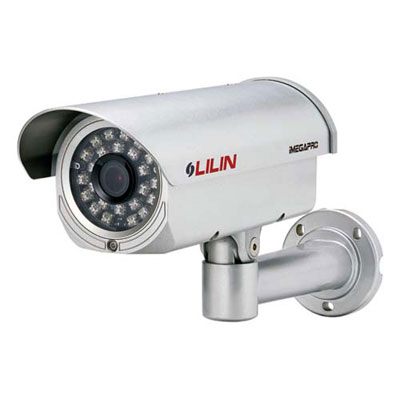

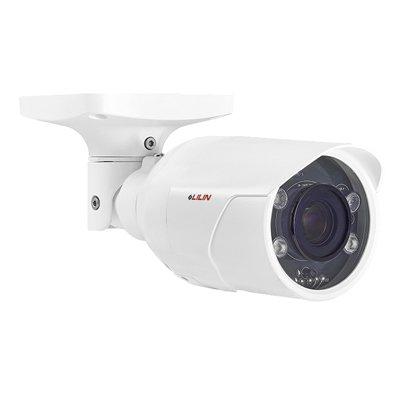

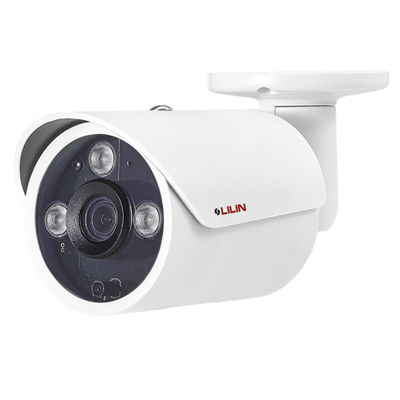

More LILIN IP cameras
