Hikvision DeepinViewX AI Cameras for Perimeter Protection
Technical Specification
- Make: Hikvision
- Model code: IDS-2CD7A46G2/V-XZHS(Y)
- Chip Inch Size: 1/1.8
- Color Type: Color / Monochrome
- Resolution: 4MP
High quality imaging with 4 MP resolution Excellent low-light performance via DarkFighter technology Clear imaging against strong back light due to 140 dB WDR technology Efficient H.265+ compression technology to save bandwidth and storage 5 streams to meet a wide variety of applications Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional) Built-in heater to ensure clear image under rainy or snowy weather Dedicated large scale AI model for perimeter protection, reduce false alarms by 98%
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision USA Inc. |
| Category | Video Surveillance>IP cameras |
| Model code | IDS-2CD7A46G2/V-XZHS(Y) |
| Chip Inch Size | 1/1.8 |
| Color Type | Color / Monochrome |
| Resolution | 4MP |
| Sensitivity Lux | Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR,0 Lux with light |
| Electrical Specifications | Voltage: 12 V DC, 24 V AC, PoE |
| Focal Length mm | 2.8 ~ 12 |
| Mount Type | Pole, Corner |
| Wide Dynamic Range | Yes |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1 s to 1/100,000 s |
| S/ N (Signal/ Noise) Ratio dB | ≥ 52 dB |
| Y/ C (Video Output) | 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) |
| Compression Type | H.265+/H.265/H.264+/H.264/MJPEG |
| Network Properties |
Interface: RJ45 10 M/100 M/1000 M self-adaptive Ethernet Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets |
| Physical Specifications |
Dimensions mm: Ø140 x 377.4 Weight g: 2280 |
| Environmental Specifications |
Protection: IP67, IK10 Operating Temperature oC: -40 ~ +65 C (-40 ~ +149 F) Operating Humidity %: ≤ 95 |
| System Requirements | Web Browser: Plug-in required live view: IE 10, IE 11 / Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+ / Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Product description

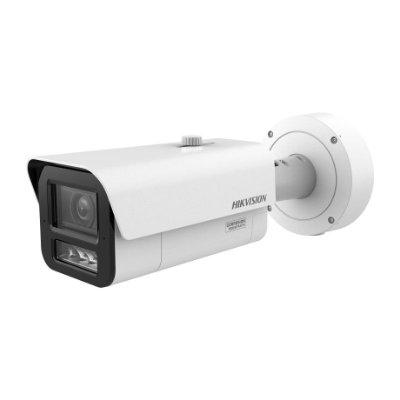

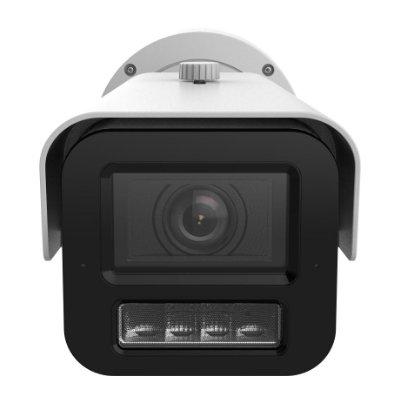

Hikvision IDS-2CD7A46G2/V-XZHS(Y) 4MP DeepinView Moto Varifocal Bullet Camera
The Hikvision IDS-2CD7A46G2/V-XZHS(Y) camera is an advanced security solution, designed to deliver superior image quality and reliable performance. Featuring a 4MP resolution and leveraging DarkFighter technology, this camera excels in low-light environments, ensuring clear visuals even in challenging lighting conditions. With its 140 dB Wide Dynamic Range (WDR), the camera effectively balances lighting variations, providing clear images against strong backlight scenarios.
Key Features
- High-quality 4MP resolution imaging
- Remarkable low-light performance using DarkFighter technology
- 140 dB WDR for optimal performance in varied lighting
- Efficient H.265+ compression technology for reduced bandwidth and storage needs
- Five versatile streaming options to suit diverse applications
- Durable design: IP67-rated for water and dust resistance, IK10 vandal-proof rating, and optional NEMA 4X corrosion resistance
- Embedded AI for perimeter protection, minimizing false alarms by 98%
Ideal Use Cases
The Hikvision camera is tailored for environments demanding robust security measures, such as urban surveillance, industrial sites, and expansive perimeter protection. Its resilient build and advanced AI capabilities make it an excellent choice for locations needing dependable and intelligent security solutions.
For professionals in the physical security industry, the IDS-2CD7A46G2/V-XZHS(Y) ensures comprehensive area monitoring and reliable threat detection, safeguarding both assets and peace of mind.
