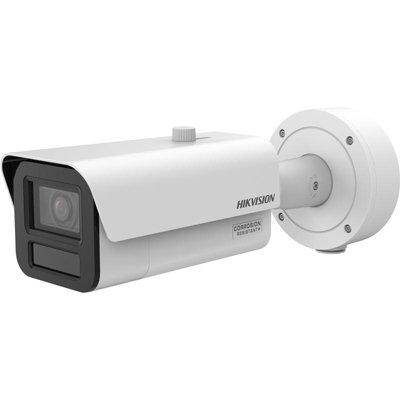

Hikvision DarkFighter Gen-2 DeepinView Cameras
Technical Specification
- Make: Hikvision
- Model code: iDS-2CD7A46G2-IZHS(2.8-12mm)
- Series: Hikvision DeepinView Series
- Chip Inch Size: 1/1.8
- Color Type: Color / Monochrome
High quality imaging with 4 MP resolution Excellent low-light performance via DarkFighter 2.0 technology Clear imaging against strong back light due to 150 dB AWDR technology Efficient H.265+ compression technology to save bandwidth and storage 5 streams to meet a wide variety of applications Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional) Capture vehicles and humans of different speed clearly via ShotN technology High frame rate, up to 2MP@120fps and 4MP@60fps Built-in heater to ensure clear image under rainy or snowy weather Built-in Gyro sensor for GIS and vibration detection Built-in power meter for historical power statistics
Read more| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision USA Inc. |
| Category | Video Surveillance>IP cameras |
| Model code | iDS-2CD7A46G2-IZHS(2.8-12mm) |
| Series | Hikvision DeepinView Series |
| Chip Inch Size | 1/1.8 |
| Color Type | Color / Monochrome |
| Resolution | 4MP |
| Sensitivity Lux | Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR |
| Electrical Specifications |
Voltage: 12 V DC, 24 V AC, PoE Power Consumption: 22.56 W (12 V DC) ; 21.5 W (24 V AC) ; 22.6 W (PoE) |
| Motion Activated | Yes |
| Focal Length mm | 2.8 ~ 12 |
| Mount Type | Pole, Corner |
| Wide Dynamic Range | Yes |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1 s ~ 1/100,000 s |
| S/ N (Signal/ Noise) Ratio dB | ≥ 52 |
| Y/ C (Video Output) | 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) |
| Compression Type | H.265+/H.265/H.264+/H.264/MJPEG |
| Network Properties |
Interface: RJ45 10 M/100 M/1000 M self-adaptive Ethernet Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets |
| Physical Specifications |
Weight g: 2170 Dimensions mm: Ø140 x 378.4 |
| Environmental Specifications |
Protection: IP67, IK10 Operating Temperature oC: -40 ~ +65 C (-40 ~ +149 F) Operating Humidity %: ≤95 |
| Additional info |
|
