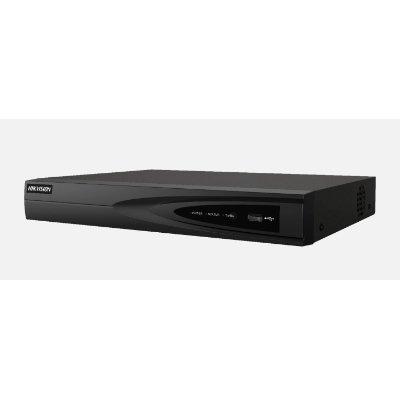

Hikvision DS-7608NI-K1 8-ch 1U 4K NVR

Technical Specification

This product model is not available in this region

Features:

Make: Hikvision
Model code: DS-7608NI-K1
Video inputs: 8
Recording system: HDD
Storage capacity: 8 TB

Additional info:

Up to 8-ch IP camera inputs H.265+/H.265/H.264+/H.264 video formats Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity Up to 80 Mbps incoming bandwidth

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hikvision
Manufacturer	Hikvision USA Inc.
Category	Video Surveillance>Network Video Recorders (NVRs)
Model code	DS-7608NI-K1
Video inputs	8
Recording system	HDD
Storage capacity	8 TB
Secondary storage	USB
Storage rate	30 fps
Resolution	8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Alarm Handling	N/A (4 in / 1 out is optional)
Electrical Specifications	Voltage: 12 V DC Power consumption (W): ≤ 10 W
Physical Specifications	Weight (kg): ≤ 1 Dimensions (mm): 320 × 240 × 48
Environmental Specifications	Operating temperature (°C): -10 ~ +55 C (14 ~ 131 F) Operating humidity (%): 10 ~ 90
Additional info	Up to 8-ch IP camera inputs H.265+/H.265/H.264+/H.264 video formats Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity Up to 80 Mbps incoming bandwidth
