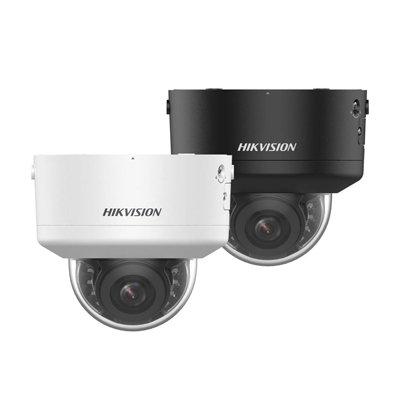

Hikvision EasyIP 4.0 Plus Network Cameras with ColorVu 3.0 Technology

Technical Specification

This product model is not available in this region

Hikvision EasyIP 4.0 Plus Network Cameras with ColorVu 3.0 Technology

Features:

Make: Hikvision
Model code: DS-2CD2747G2H-LIPTRZS
Chip Inch Size: 1/1.8
Color Type: Color / Monochrome
Resolution TVL: 4MP

Additional info:

Motorized Pan, Tilt, Rotate, Zoom for easy installation and monitoring 24/7 colorful imaging via ColorVu technology IR light & White light & Smart Hybrid Light modes Clear imaging against strong back light due to 130 dB WDR technology Human and vehicle classification based on deep learning Water and dust resistant (IP66) and vandal resistant (IK10) Audio and alarm interface available

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hikvision
Manufacturer	Hikvision USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	DS-2CD2747G2H-LIPTRZS
Chip Inch Size	1/1.8
Color Type	Color / Monochrome
Resolution TVL	4MP
Megapixel	Yes
Sensitivity lux	Color: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: Max. 12.6 W (12 VDC) ; Max. 15 W (PoE)
Focal length	2.8 ~ 12 mm
Compression	H.265/H.264/H.264+/H.265+/MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3 s to 1/100,000 s
S/ N (Signal/ Noise) Ratio dB	≥ 52
Network Properties	Interface: RJ45 10 M/100 M self-adaptive Ethernet Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Physical Specifications	Dimensions mm: Ø155 x 140.4 Weight g: 820
Environmental Specifications	Operating Temp ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: < 95 Protection: IP66, IK10
Additional info	Motorized Pan, Tilt, Rotate, Zoom for easy installation and monitoring 24/7 colorful imaging via ColorVu technology IR light & White light & Smart Hybrid Light modes Clear imaging against strong back light due to 130 dB WDR technology Human and vehicle classification based on deep learning Water and dust resistant (IP66) and vandal resistant (IK10) Audio and alarm interface available
