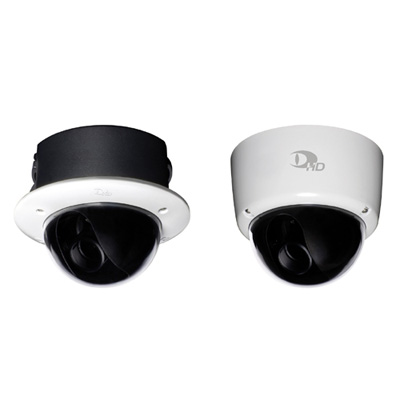

Dallmeier DDF4820HDV-DN: New IP Dome Camera With Real-time Full-HD Video

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Dallmeier DDF4820HDV-DN: New IP Dome Camera With Real-time Full-HD Video

Features:

Make: Dallmeier
Model code: DDF4820HDV-DN
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution TVL: 2048 x 1536

Additional info:

The DDF4820HDV-DN is a 3-megapixel HD network camera built into a vandal-resistant (IK10) dome enclosure. The camera provides real-time Full HD video (1080p/30) using the H.264 codec, currently, the most advanced standard for high-efficiency video compression and supports resolutions up to 3-megapixel.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dallmeier
Manufacturer	Dallmeier electronic USA, Inc.
Category	Video Surveillance>IP Dome cameras
Model code	DDF4820HDV-DN
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	2048 x 1536
HD	Yes
Megapixel	Yes
Sensitivity lux	0.45
Dome Type	PTZ
Indoor/Outdoor	Indoor/Outdoor
Digital (DSP)	Yes
Mount Type	ceiling, surface
Electrical Specifications	Voltage: 12 V DC Power Consumption: 4.5 W
Focal length	3 ~ 9mm
Compression	H.264, MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/25(30) – 1/2500 s
Physical Specifications	Dimensions mm: 170 × 135 Weight g: 1200
Environmental Specifications	Operating Temp ^oC: 0 ~ +35 Operating Humidity %: 0 ~ 90 Protection: IP67
Additional info	The DDF4820HDV-DN is a 3-megapixel HD network camera built into a vandal-resistant (IK10) dome enclosure. The camera provides real-time Full HD video (1080p/30) using the H.264 codec, currently, the most advanced standard for high-efficiency video compression and supports resolutions up to 3-megapixel.
