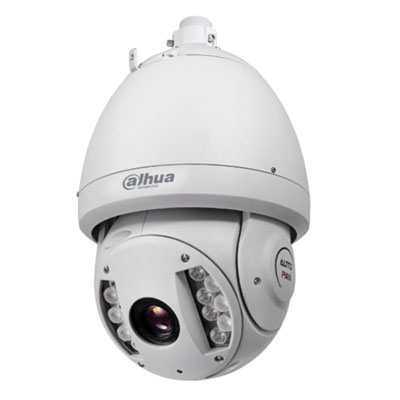

Dahua Technology SD6981C-HN 1.3MP Color Monochrome HD Network IR PTZ Dome Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology SD6981C-HN 1.3MP Color Monochrome HD Network IR PTZ Dome Camera

Features:

Make: Dahua Technology
Model code: SD6981C-HN
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution TVL: 1.3MP

Additional info:

Dahua Technology SD6981C-HN is a 1.3MP color monochrome HD network IR PTZ dome camera that features H.264 & MJPEG dual-stream encoding and supports intelligent 3D positioning with DH - SD protocol.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	SD6981C-HN
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	1.3MP
HD	Yes
Megapixel	Yes
Sensitivity lux	0.005
Dome Type	PTZ
Pan Speed ^o/ sec	Manual - 0.1 ~ 160
Digital (DSP)	Yes
Tilt Speed ^o/ sec	Manual - 0.1 ~ 120
Electrical Specifications	Voltage: 24 V AC Power Consumption: 17 W
Focal length	4.4 ~ 132 mm
Presets	255
Compression	H.264/MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3 ~ 1/10000s
S/ N (Signal/ Noise) Ratio dB	>50
Signal Mode	PAL / NTSC
Built-in IR LED	Yes
Video Output	BNC(1.0Vp - p/75 Ohm)
Zoom Ratio	x2
Network Properties	Interface: RJ - 45 (10/100Base - T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Control: PTZ Image Frame Rate: 30fps Inclusive DVR/ Web Server: Micro SD
Physical Specifications	Dimensions mm: 230 x 382 Weight g: 7,000
Environmental Specifications	Operating Temp ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: <90 Protection: IP66
Additional info	Dahua Technology SD6981C-HN is a 1.3MP color monochrome HD network IR PTZ dome camera that features H.264 & MJPEG dual-stream encoding and supports intelligent 3D positioning with DH - SD protocol.
