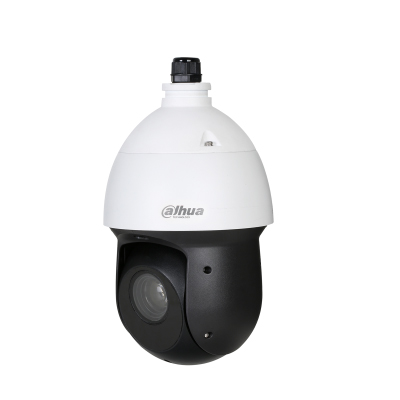

Dahua Technology SD49412T-HN 4MP 12x IR PTZ Network Camera

Please note: this is a discontinued product.

See relevant products

Features:

Additional info:

1/3” 4Megapixel CMOS Powerful 12x optical zoom Max. 25/30fps@4M/3M IVS Support PoE+ IR distance up to 100m IP66

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	SD49412T-HN
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	4 MP
Megapixel	Yes
Dome Type	PTZ
Sensitivity lux	0 ~ 0.05
Pan Speed ^o/ sec	0.1 ~ 200 (Manual) ; 240 (Preset)
Tilt Speed ^o/ sec	0.1 ~ 120 (Manual) ; 200 (Preset)
Indoor/Outdoor	Indoor/Outdoor
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC, PoE+ Power Consumption: 13 W
Focal length	5.3mm~64mm
Presets	300
Compression	H.265/H.264/MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/1s~1/30,000s
S/ N (Signal/ Noise) Ratio dB	> 50
Network Properties	Interface: RJ-45 (10Base-T/100Base-TX) Network Protocols: IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x Image Frame Rate: 25 fps /30 fps
Physical Specifications	Dimensions mm: 160 x 295 Weight g: 3000
Environmental Specifications	Operating Temp ^oC: -40 ~ +70 C (-40 ~ +158 F) Operating Humidity %: < 90 Protection: IP66
System Requirements	Web Browser: IE, Chrome, Firefox, Safari
Additional info	1/3” 4Megapixel CMOS Powerful 12x optical zoom Max. 25/30fps@4M/3M IVS Support PoE+ IR distance up to 100m IP66
