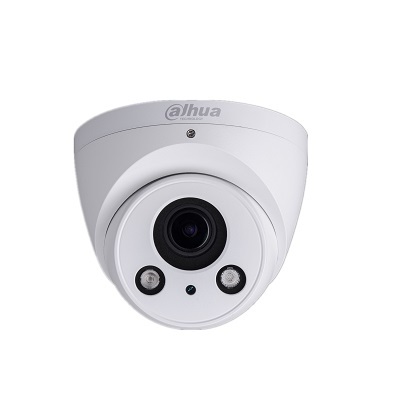

Dahua Technology IPC-HDW5830R-Z 8MP IR Eyeball Network Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology IPC-HDW5830R-Z 8MP IR Eyeball Network Camera

Features:

Make: Dahua Technology
Model code: IPC-HDW5830R-Z
Series: Eco-Savvy 3.0 series
Chip Inch Size: 1/2
Color Type: Color / Monochrome

Additional info:

1/2.5” 8Megapixel progressive scan STARVIS™ CMOS H.265&H.264 dual-stream encoding 15fps@4K(3840×2160),25/30fps@3M(2304×1296) Day/Night(ICR), 3DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.7mm ~12mm motorized lens

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	IPC-HDW5830R-Z
Chip Inch Size	1/2
Color Type	Color / Monochrome
Resolution TVL	8MP
Megapixel	Yes
Sensitivity lux	0 ~ 0.05
Indoor/Outdoor	Outdoor
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 8.5 W
Focal length	122 x 105
Compression	H.265+, H.265, H.264+, H.264
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3 ~ 1/100,000 s
S/ N (Signal/ Noise) Ratio dB	50
Built-in IR LED	Yes
Network Properties	Interface: RJ-45 (10/100BASE-T) Network Protocols: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP Image Frame Rate: 15 ~ 30 fps
Physical Specifications	Dimensions mm: 122 x 105 Weight g: 600
Environmental Specifications	Operating Temp ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 0 ~ 95 Protection: IP67
System Requirements	Web Browser: IE, Chrome, Firefox, Safari
Additional info	1/2.5” 8Megapixel progressive scan STARVIS™ CMOS H.265&H.264 dual-stream encoding 15fps@4K(3840×2160),25/30fps@3M(2304×1296) Day/Night(ICR), 3DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.7mm ~12mm motorized lens
