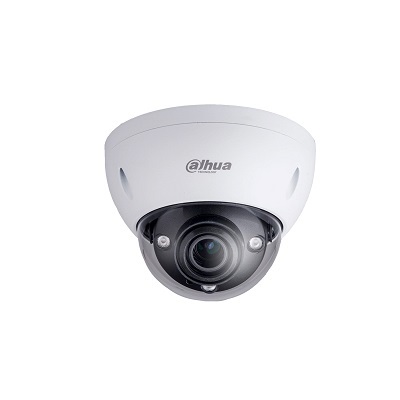

Dahua Technology IPC-HDBW8232E-Z 2MP Starlight IR Dome Network Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology IPC-HDBW8232E-Z 2MP Starlight IR Dome Network Camera

Features:

Make: Dahua Technology
Model code: IPC-HDBW8232E-Z
Series: Ultra-smart Series
Chip Inch Size: 1/2
Color Type: Color / Monochrome

Additional info:

1/1.9” 2Megapixel progressive scan CMOS H.265&H.264 triple-stream encoding 50/60fps@1080P(1920×1080) WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 4.1mm ~16.4mm motorized lens Max. IR LEDs Length 50m Micro SD memory,IP67,IK10,POE+

Contact manufacturer Contact manufacturer

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	IPC-HDBW8232E-Z
Chip Inch Size	1/2
Color Type	Color / Monochrome
Resolution TVL	2MP
Megapixel	Yes
Sensitivity lux	0 ~ 0.002
Indoor/Outdoor	Outdoor
Digital (DSP)	Yes
Electrical Specifications	Voltage: 24 V AC, 12 V DC, PoE Power Consumption: 18 W
Focal length	4.1 ~ 16.4mm
Compression	H.265+, H.265, H.264+, H.264
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3 ~ 1/100000s
S/ N (Signal/ Noise) Ratio dB	50
Built-in IR LED	Yes
Zoom Ratio	x16
Network Properties	Interface: RJ-45 (100/1000Base-T Network Protocols: HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP Image Frame Rate: 50 ~ 60 fps
Physical Specifications	Dimensions mm: 160 x 118 Weight g: 960
Environmental Specifications	Operating Temp ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: 0 ~ 95 Protection: IP67, IK10
System Requirements	Web Browser: IE, Chrome, Firefox, Safari
Additional info	1/1.9” 2Megapixel progressive scan CMOS H.265&H.264 triple-stream encoding 50/60fps@1080P(1920×1080) WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 4.1mm ~16.4mm motorized lens Max. IR LEDs Length 50m Micro SD memory,IP67,IK10,POE+
