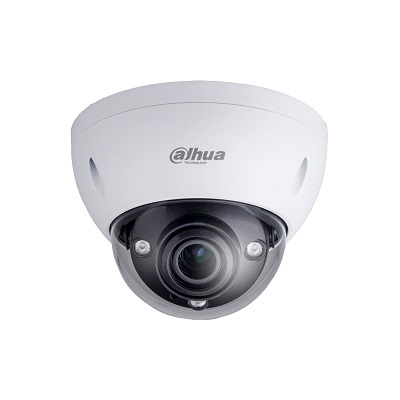

Dahua Technology IPC-HDBW5431E-Z5E 4MP WDR IR Dome Network Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: IPC-HDBW5431E-Z5E
- Series: Eco-Savvy 3.0 series
- Chip Inch Size: 1/3
- Color Type: Color / Monochrome
Additional info:
1/3” 4Megapixel progressive scan CMOS H.265&H.264 triple-stream encoding 25/30fps@4Mp(2688×1520) WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 7mm ~35mm 5X zoom lens Max. IR LEDs Length 100m
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>IP Dome cameras |
| Model code | IPC-HDBW5431E-Z5E |
| Chip Inch Size | 1/3 |
| Color Type | Color / Monochrome |
| Resolution TVL | 4MP |
| Megapixel | Yes |
| Dome Type | PTZ |
| Sensitivity lux | 0 ~ 0.03 |
| Digital (DSP) | Yes |
| Electrical Specifications |
Voltage: 12 V DC, 24 V AC, PoE Power Consumption: 15 W |
| Focal length | 7 ~ 35mm |
| Compression | H.265+, H.265, H.264+, H.264 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/3 ~ 1/100,000s |
| S/ N (Signal/ Noise) Ratio dB | >50 |
| Built-in IR LED | Yes |
| Zoom Ratio | x5 |
| Network Properties |
Interface: RJ-45 (10/100Base-T) Network Protocols: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP Image Frame Rate: 25 ~ 30fps |
| Physical Specifications |
Dimensions mm: 159 x 118 Weight g: 950 |
| Environmental Specifications |
Operating Temp oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 0 ~ 95 Protection: IP67, IK-10 |
| System Requirements | Web Browser: IE, Chrome, Firefox, Safari |
| Additional info |
|
