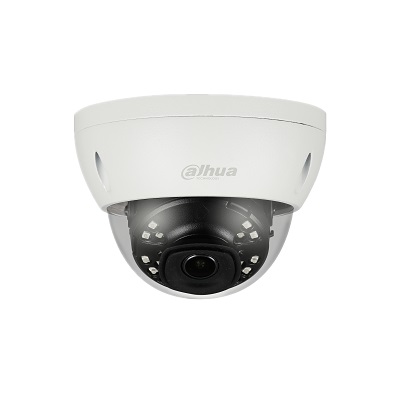

Dahua Technology IPC-HDBW4631E-ASE 6MP IR Mini Dome Network Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology IPC-HDBW4631E-ASE 6MP IR Mini Dome Network Camera

Features:

Make: Dahua Technology
Model code: IPC-HDBW4631E-ASE
Series: Eco-Savvy 3.0 series
Resolution TVL: 6MP
Megapixel: Yes

Additional info:

1/2.9” 6Megapixel progressive scan STARVIS™ CMOS H.265&H.264 triple-stream encoding 20fps@6MP(3072x2048), 25/30fps@4MP(2688x1520) Smart Detection supported WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.8mm fixed lens (3.6mm optional)

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	IPC-HDBW4631E-ASE
Resolution TVL	6MP
Megapixel	Yes
Sensitivity lux	0 ~ 0.04
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 5.5 W
Focal length	2.8 mm
Compression	H.265+, H.265, H.264+, H.264
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3(4) ~ 1/100000s
S/ N (Signal/ Noise) Ratio dB	>50
Built-in IR LED	Yes
Network Properties	Interface: RJ-45 (10/100Base-T) Network Protocols: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP Image Frame Rate: 20 ~ 30fps
Physical Specifications	Dimensions mm: 110 x 81 Weight g: 410
Environmental Specifications	Operating Temp ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 0 ~ 95 Protection: IP67, IK-10
System Requirements	Web Browser: IE, Chrome, Firefox, Safari
Additional info	1/2.9” 6Megapixel progressive scan STARVIS™ CMOS H.265&H.264 triple-stream encoding 20fps@6MP(3072x2048), 25/30fps@4MP(2688x1520) Smart Detection supported WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.8mm fixed lens (3.6mm optional)
