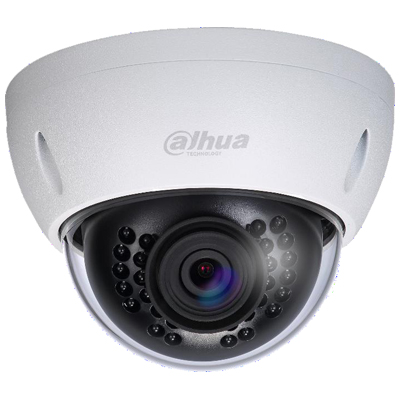

Dahua Technology IPC-HDBW4200E-(A)(S) 2MP Full HD IR Mini IP Dome Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology IPC-HDBW4200E-(A)(S) 2MP Full HD IR Mini IP Dome Camera

Features:

Make: Dahua Technology
Model code: IPC-HDBW4200E-(A)(S)
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution TVL: 2 MP

Additional info:

Dahua Technology IPC-HDBW4200E-(A)(S) is a 2MP full HD IR mini IP dome camera with DWDR, 3D-DNR as well as H.264 & MJPEG dual-stream encoding. It also features 3.6mm fixed lens.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	IPC-HDBW4200E-(A)(S)
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	2 MP
HD	Yes
Megapixel	Yes
Dome Type	Static
Sensitivity lux	0.01
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: < 4 W
Focal length	3.6 mm
Compression	H.264/ MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3(4) ~ 1/10000s
S/ N (Signal/ Noise) Ratio dB	> 50
Built-in IR LED	Yes
Network Properties	Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Image Frame Rate: 30 fps Inclusive DVR/ Web Server: Micro SD
Physical Specifications	Dimensions mm: 110 x 81 Weight g: 290
Environmental Specifications	Operating Temp ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 0 ~ 95 Protection: IP66, IK10
Additional info	Dahua Technology IPC-HDBW4200E-(A)(S) is a 2MP full HD IR mini IP dome camera with DWDR, 3D-DNR as well as H.264 & MJPEG dual-stream encoding. It also features 3.6mm fixed lens.
