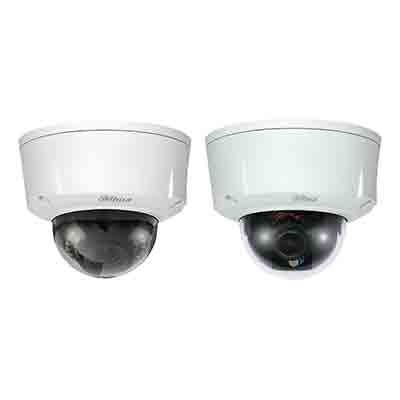

Dahua IPC-HDB8301-Z 3Megapixel Full HD WDR Intelligent Network Motorized (IR) Dome Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua IPC-HDB8301-Z 3Megapixel Full HD WDR Intelligent Network Motorized (IR) Dome Camera

Features:

Make: Dahua Technology
Model code: IPC-HDB8301-Z
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution TVL: 3MP

Additional info:

Dahua IPC-HDB8301-Z is a 3Megapixel full HD WDR intelligent network motorized (IR) dome camera featuring smart triple streams supported, smart detection and scene change detection.

Contact manufacturer Contact manufacturer

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	IPC-HDB8301-Z
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	3MP
HD	Yes
Megapixel	Yes
Dome Type	PTZ
Sensitivity lux	0.01
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC Power Consumption: 13.5 W
Focal length	3 ~ 9mm
Compression	H.264, MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3 ~ 1/10000
S/ N (Signal/ Noise) Ratio dB	> 50
Network Properties	Interface: RJ-45 (100/1000Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Image Frame Rate: 30 fps
Physical Specifications	Dimensions mm: 151 x 119 Weight g: 1,250
Environmental Specifications	Operating Temp ^oC: -30 ~ +60 C(-22 ~ +140 F) Operating Humidity %: 0 ~ 95 Protection: IP66
Additional info	Dahua IPC-HDB8301-Z is a 3Megapixel full HD WDR intelligent network motorized (IR) dome camera featuring smart triple streams supported, smart detection and scene change detection.
