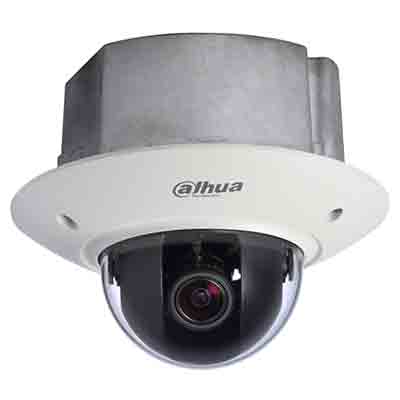

Dahua IPC-HDB5202P-DI 2megapixel Full HD Vandal-proof Network In-ceiling Dome Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: IPC-HDB5202P-DI
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
  • Resolution TVL: 2MP
Read more
Additional info:

Dahua IPC-HDB5202P-DI is a 2megapixel full HD vandal-proof network in-ceiling dome camera featuring H.264 & MJPEG dual-stream encoding, multiple network monitoring and 3~9mm varifocal motorized lens.

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code IPC-HDB5202P-DI
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution TVL 2MP
HD Yes
Megapixel Yes
Dome Type PTZ
Sensitivity lux 0.1
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC
Power Consumption: 6 W
Focal length 3 ~ 9mm
Compression H.264, MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/3 ~ 1/10000
S/ N (Signal/ Noise) Ratio dB > 50
Network Properties Interface: RJ-45 (100/1000Base-T)
Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Image Frame Rate: 30 fps
Physical Specifications Dimensions mm: 168 x 140
Weight g: 1,180
Environmental Specifications Operating Temp oC: -20 ~ +60 C(-4 ~ +140 F)
Operating Humidity %: 0 ~ 90
Protection: IK10, IP66
Additional info Dahua IPC-HDB5202P-DI is a 2megapixel full HD vandal-proof network in-ceiling dome camera featuring H.264 & MJPEG dual-stream encoding, multiple network monitoring and 3~9mm varifocal motorized lens.
