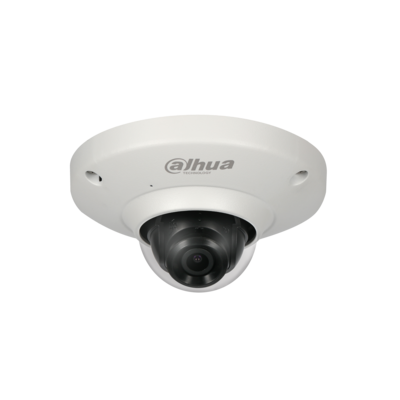

Dahua Technology IPC-HDB4431C-AS 4MP Mini Dome Network Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology IPC-HDB4431C-AS 4MP Mini Dome Network Camera

Features:

Make: Dahua Technology
Model code: IPC-HDB4431C-AS
Series: Eco-Savvy 3.0 series
Chip Inch Size: 1/3
Color Type: Color / Monochrome

Additional info:

1/3” 4Megapixel progressive scan CMOS H.265&H.264 triple-stream encoding 25/30fps@4MP(2688×1520) Smart Detection supported WDR(120dB), 3DNR,AWB,AGC,BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.8mm fixed lens (3.6mm optional)

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	IPC-HDB4431C-AS
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	4MP
Megapixel	Yes
Sensitivity lux	0.08 ~ 0.2
Indoor/Outdoor	Outdoor
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 3 W
Focal length	2.8 ~ 3mm
Compression	H.265+, H.265, H.264+, H.264
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3(4) ~ 1/100000s
S/ N (Signal/ Noise) Ratio dB	50
Built-in IR LED	Yes
Zoom Ratio	x16
Network Properties	Interface: RJ-45 (10/100BASE-T) Network Protocols: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP Image Frame Rate: 25 ~ 30 fps
Physical Specifications	Dimensions mm: 110 x 56 Weight g: 380
Environmental Specifications	Operating Temp ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 0 ~ 95 Protection: IP66
System Requirements	Web Browser: IE, Chrome, Firefox, Safari
Additional info	1/3” 4Megapixel progressive scan CMOS H.265&H.264 triple-stream encoding 25/30fps@4MP(2688×1520) Smart Detection supported WDR(120dB), 3DNR,AWB,AGC,BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.8mm fixed lens (3.6mm optional)
Download PDF version Download PDF version
