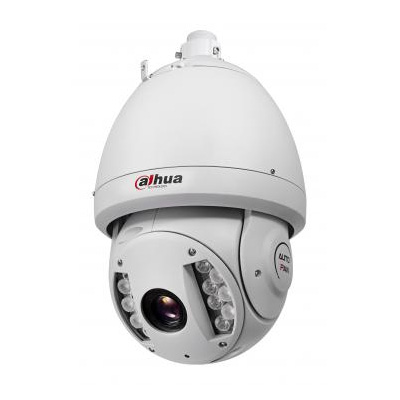

Dahua Technology HD-SD6980C-HN IR PTZ Dome Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology HD-SD6980C-HN IR PTZ Dome Camera

Features:

Make: Dahua Technology
Model code: HD-SD6980C-HN
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution TVL: 1.3 MP

Additional info:

Dahua Technology HD-SD6980C-HN IR PTZ dome camera supports intelligent 3D positioning with DH-SD protocol. The camera has the following features: auto iris, auto focus, AWB, AGC, BLC, DNR. It also supports mutiple network mointoring: web viewer, CMS(DSS/PSS) & DMSS.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	HD-SD6980C-HN
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	1.3 MP
HD	Yes
Megapixel	Yes
Dome Type	PTZ
Sensitivity lux	0.005
Pan Speed ^o/ sec	0.1 ~ 160
Indoor/Outdoor	Indoor/Outdoor
Digital (DSP)	Yes
Tilt Speed ^o/ sec	0.1 ~ 120
Electrical Specifications	Voltage: 24 V AC Power Consumption: 17 W
Focal length	4.7 ~ 84.6 mm
Presets	255
Compression	H.264 / MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3(4) ~ 1/10000 s
S/ N (Signal/ Noise) Ratio dB	>50
Signal Mode	PAL / NTSC
Built-in IR LED	Yes
Video Output	BNC(1.0Vp-p/75 ohms)
Zoom Ratio	x18
Network Properties	Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Control: PTZ Image Frame Rate: 30 fps
Physical Specifications	Dimensions mm: 223 x 381 Weight g: 7,000
Environmental Specifications	Operating Temp ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: <90 Protection: IP66
Additional info	Dahua Technology HD-SD6980C-HN IR PTZ dome camera supports intelligent 3D positioning with DH-SD protocol. The camera has the following features: auto iris, auto focus, AWB, AGC, BLC, DNR. It also supports mutiple network mointoring: web viewer, CMS(DSS/PSS) & DMSS.
