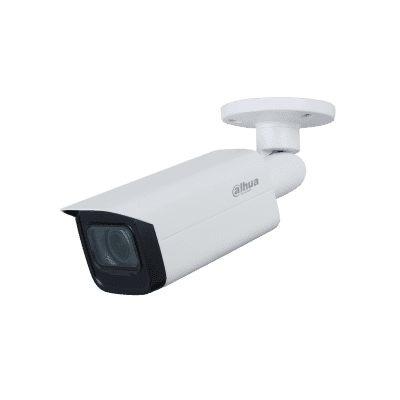

Dahua HAC-HFW2501TU-Z-A 5MP Starlight HDCVI IR Bullet Camera
Product Profile
Experience 5MP full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Pro series 5MP HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various motorized/fixed lens models with 120 dB true WDR and a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance make the camera an ideal choice for SMB solutions.
Technical Specification
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Surveillance cameras |
| Model code | HAC-HFW2501TU-Z-A |
| Color Type | Color / Monochrome |
| Resolution TVL | 5 MP |
| Sensitivity lux | 0.001 |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 10.7W |
| Focal Length mm | 2.7 ~ 13.5 |
| Mount Type | Pole |
| Wide Dynamic Range | Yes |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | PAL: 1/3 s–1/100,000 s, NTSC: 1/4 s–1/100,000 s |
| S/ N (Signal/ Noise) Ratio dB | > 65 |
| Signal Mode | PAL, NTSC |
| Mini or Compact | Compact |
| Zoom | Yes |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
| Physical Specifications |
Dimension mm: 244.1 x 90.4 x 90.4 Weight g: 760 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F) Protection: IP67 Operating Humidity %: < 95 |
| Additional info |
|
