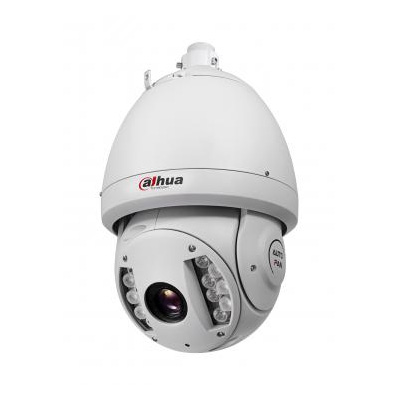

Dahua Technology DHSD-6982C-HN Network IR PTZ Dome Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DHSD-6982C-HN
- Chip Inch Size: 1/3
- Color Type: Color / Monochrome
- Resolution TVL: 2 MP
Additional info:
Dahua Technology DHSD-6982C-HN network IR PTZ dome camera supports intelligent 3D positioning with DH-SD protocol. The camera includes the following features auto iris, auto focus, AWB, AGC, BLC, DWDR, day/night(ICR). The camera has x30 optical zoom with built-in 7/2 alarm in/out.
Read moreMake | Dahua Technology |
---|---|
Manufacturer | Dahua Technology USA Inc. |
Category | Video Surveillance>IP Dome cameras |
Model code | DHSD-6982C-HN |
Chip Inch Size | 1/3 |
Color Type | Color / Monochrome |
Resolution TVL | 2 MP |
HD | Yes |
Megapixel | Yes |
Dome Type | PTZ |
Sensitivity lux | 0.005 |
Pan Speed o/ sec | 0.1 ~ 160 |
Tilt Speed o/ sec | 0.1 ~ 120 |
Indoor/Outdoor | Indoor/Outdoor |
Digital (DSP) | Yes |
Electrical Specifications |
Voltage: 24 V AC Power Consumption: 17 W |
Focal length | 4.3 ~ 129 |
Presets | 255 |
Compression | H.264 / MJPEG |
Back Light Compensation | Yes |
Auto Gain Control | Yes |
White Balance | Yes |
Electronic Shutter range | 1/1 ~ 1/30,000 s |
S/ N (Signal/ Noise) Ratio dB | >50 |
Signal Mode | PAL / NTSC |
Built-in IR LED | Yes |
Video Output | BNC(1.0Vp-p/75 ohms) |
Zoom Ratio | x30 |
Network Properties |
Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Control: PTZ Image Frame Rate: 30 fps |
Physical Specifications |
Dimensions mm: 230 x 381 Weight g: 7,000 |
Environmental Specifications |
Operating Temp oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: <90 Protection: IP66 |
Additional info | Dahua Technology DHSD-6982C-HN network IR PTZ dome camera supports intelligent 3D positioning with DH-SD protocol. The camera includes the following features auto iris, auto focus, AWB, AGC, BLC, DWDR, day/night(ICR). The camera has x30 optical zoom with built-in 7/2 alarm in/out. |
Download PDF version Download PDF version |
