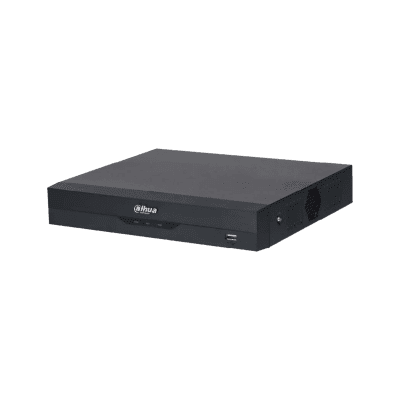

Dahua DH-XVR5104HS-4KL-I3 4CH Penta-brid 4K-N/5MP Compact 1U 1HDD WizSense DVR

Technical Specification

This product model is not available in this region

Dahua DH-XVR5104HS-4KL-I3 4CH Penta-brid 4K-N/5MP Compact 1U 1HDD WizSense DVR

Features:

Make: Dahua Technology
Model code: DH-XVR5104HS-4KL-I3
Series: WizSense Series
Channels: 4
Hybrid IP inputs: 8

Additional info:

H.265+/H.265 dual-stream video compression Supports all-channels AI Coding Supports HDCVI/AHD/TVI/CVBS/IP video inputs Max 8 channels IP camera inputs, each channel up to 8MP; Max 64 Mbps incoming bandwidth Up to 4 channels video stream (analog channel) Perimeter Protection Up to 4 channels video stream (analog channel) SMD Plus Up to 1 channel video stream (analog channel) human face recognition IoT & POS functionalities

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Digital video recorders (DVRs)
Model code	DH-XVR5104HS-4KL-I3
Series	WizSense Series
Channels	4
Hybrid IP inputs	8
Inbuilt Multiplexer	Yes
Storage Capacity GB	16,000
Compression Type	AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
External Storage	USB device and network
Recording System	HDD
Physical Specifications	Dimensions mm: 260 x 237.9 x 47.6 Weight kg: 0.96
Electrical Specifications	Voltage: 12 V DC Power Consumption: <7 W (without HDD)
Environmental Specifications	Operating Temp ^oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: ≤ 93 %
Additional info	H.265+/H.265 dual-stream video compression Supports all-channels AI Coding Supports HDCVI/AHD/TVI/CVBS/IP video inputs Max 8 channels IP camera inputs, each channel up to 8MP; Max 64 Mbps incoming bandwidth Up to 4 channels video stream (analog channel) Perimeter Protection Up to 4 channels video stream (analog channel) SMD Plus Up to 1 channel video stream (analog channel) human face recognition IoT & POS functionalities
