Dahua 4CH 1080N WizSense DVR (Cooper Series)

Technical Specification

This product model is not available in this region

Dahua 4CH 1080N WizSense DVR (Cooper Series)

Features:

Make: Dahua Technology
Model code: DH-XVR1B04-I/T
Series: WizSense Series
Channels: 4
Hybrid IP inputs: 5

Additional info:

*Dolynk cloud compatible version: DMSS V2.0.1 and above, Dolynk Care V2.5.1 and above. 4-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder. 4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles. 4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos. Supports HDCVI, AHD, TVI, CVBS and IP video input. Supports up to 5-channel IP camera input and each channel can be up to 2 MP. The incoming bandwidth reaches 20 Mbps. Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes. Smart H.265+ and H.265 dual-stream video compression.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Digital video recorders (DVRs)
Model code	DH-XVR1B04-I/T
Series	WizSense Series
Channels	4
Hybrid IP inputs	5

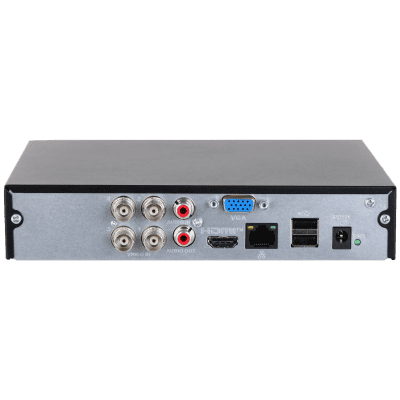

Monitor Outputs	1 HDMI, 1 VGA
Compression Type	AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Recording System	HDD
Audio Recording and Properties	G.711a; G.711u; PCM
Physical Specifications	Dimensions mm: 197 x 204.3 x 41.5 Weight kg: 0.54 kg
Electrical Specifications	Voltage: 12 V DC Power Consumption: <7 W (without HDD)
Environmental Specifications	Operating Temp ^oC: -10 ~ +45 C (14 ~ 113 F) Operating Humidity %: 10 ~ 90
Additional info	*Dolynk cloud compatible version: DMSS V2.0.1 and above, Dolynk Care V2.5.1 and above. 4-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder. 4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles. 4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos. Supports HDCVI, AHD, TVI, CVBS and IP video input. Supports up to 5-channel IP camera input and each channel can be up to 2 MP. The incoming bandwidth reaches 20 Mbps. Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes. Smart H.265+ and H.265 dual-stream video compression.
Download PDF version Download PDF version
