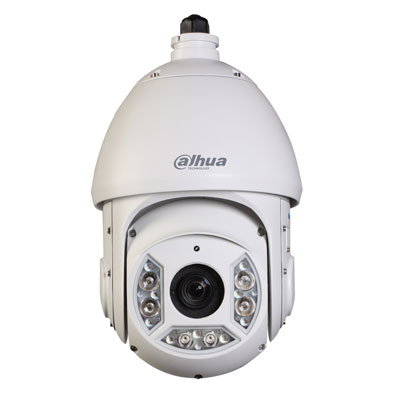

Dahua Technology DH-SD6C230E-HN 2 Megapixel IR PTZ Dome Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-SD6C230E-HN
  • Series: EXPTZ Series
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
Read more
Additional info:

Dahua Technology DH-SD6C230E-HN is a 2 megapixel IR PTZ dome camera that features: 30x optical zoom H.264 & MJPEG dual-stream encoding Enhanced Chipset Advanced Surveillance Camera Max. 25/30fps@1080P(1920 x1080) & 720P resolution DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus Max 240°/s pan speed, 360° endless pan rotation Up to 255 presets, 5 auto scan, 8 tour, 5 pattern Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS Built-in 2/1 alarm in/out, Micro SD memory, IP66

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-SD6C230E-HN
Series EXPTZ Series
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution TVL 2 MP
HD Yes
Megapixel Yes
Dome Type PTZ
Sensitivity lux 0.005
Pan Speed o/ sec Manual: 0.1 ~ 160
Digital (DSP) Yes
Tilt Speed o/ sec Manual: 0.1 ~ 120
Electrical Specifications Voltage: 24 V AC
Power Consumption: 10.5 W
Focal length 4.3 ~ 129 mm
Presets 80
Compression H.264/MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/1 ~ 1/30,000s
S/ N (Signal/ Noise) Ratio dB >50
Built-in IR LED Yes
Video Output BNC(1.0Vp-p/75Ohm)
Zoom Ratio x16
Network Properties Interface: RJ-45 (10/100Base-T)
Network Protocols: IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Control: PTZ
Image Frame Rate: 30fps
Inclusive DVR/ Web Server: Micro SD
Physical Specifications Dimensions mm: 205 x 360
Weight g: 7,800
Environmental Specifications Operating Temp oC: -40 ~ +60 C (-40 ~ +140 F)
Operating Humidity %: >90
Protection: IP66
Additional info Dahua Technology DH-SD6C230E-HN is a 2 megapixel IR PTZ dome camera that features:
  • 30x optical zoom
  • H.264 & MJPEG dual-stream encoding
  • Enhanced Chipset Advanced Surveillance Camera
  • Max. 25/30fps@1080P(1920 x1080) & 720P resolution
  • DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Max 240°/s pan speed, 360° endless pan rotation
  • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Built-in 2/1 alarm in/out, Micro SD memory, IP66
