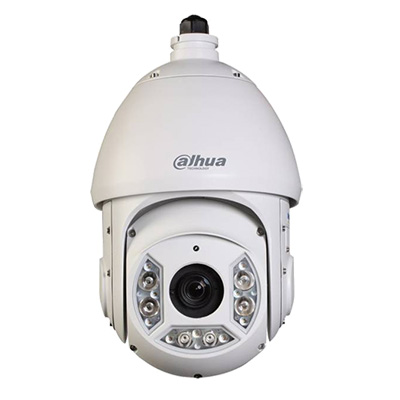

Dahua Technology DH-SD6C220T-HN 2 Megapixel Full HD 20x Network IR PTZ Dome Camera

Please note: this is a discontinued product.

See relevant products

Features:

Additional info:

DH-SD6C220T-HN is a 2 megapixel full HD 20x network IR PTZ dome camera that supports intelligent 3D positioning with DH-SD protocol.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	DH-SD6C220T-HN
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	2MP
HD	Yes
Megapixel	Yes
Sensitivity lux	0.005
Pan Speed ^o/ sec	Preset- 240, Manual 0.1 ~ 160
Indoor/Outdoor	Indoor/Outdoor
Digital (DSP)	Yes
Tilt Speed ^o/ sec	Preset- 200, Manual 0.1 ~ 120
Electrical Specifications	Voltage: 24 V AC Power Consumption: 10.5 W
Focal length	4.7 ~ 94 mm
Compression	H.264, MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/1 ~ 1/30,000s
S/ N (Signal/ Noise) Ratio dB	50
Video Output	BNC(1.0Vp-p/75?)
Zoom Ratio	x16
Network Properties	Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x Image Frame Rate: 30 fps / 25 fps
Physical Specifications	Dimensions mm: 205 x 360 Weight g: 5,000
Environmental Specifications	Operating Temp ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: 0 ~ 90 Protection: IP66
Additional info	DH-SD6C220T-HN is a 2 megapixel full HD 20x network IR PTZ dome camera that supports intelligent 3D positioning with DH-SD protocol.
