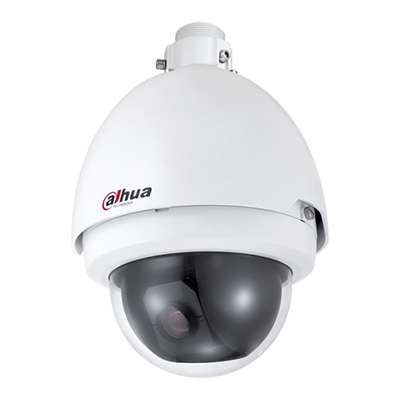

Dahua Technology DH-SD65C82C-HS 2 MP HD PTZ Dome Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-SD65C82C-HS 2 MP HD PTZ Dome Camera

Features:

Make: Dahua Technology
Model code: DH-SD65C82C-HS
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution TVL: 2 MP

Additional info:

Dahua Technology DH-SD65C82C-HS 2 MP HD PTZ dome camera supports intelligent 3D positioning with DH-SD protocol. The camera has the following features: DWDR, day/night(ICR), DNR (2D&3D), auto iris, auto focus, AWB, AGC,BLC, built-in 7/2 alarm in/out.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>Dome cameras
Model code	DH-SD65C82C-HS
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	2 MP
HD	Yes
Dome Type	PTZ
Sensitivity lux	0.005
Pan Speed ^o/ sec	0.1 ~ 300
Digital (DSP)	Yes
Indoor/Outdoor	Indoor/Outdoor
Tilt Speed ^o/ sec	0.1 ~ 250
Electrical Specifications	Voltage: 24 V AC Power Consumption: 15 W
Focal length	4.3 ~ 129 mm
Presets	255
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/1 ~ 1/30,000 s
S/ N (Signal/ Noise) Ratio dB	>50
Signal Mode	PAL / NTSC
Video Output	BNC(1.0Vp-p/75 ohms)
Zoom Ratio	x30
Network Properties	Control: PTZ Image Frame Rate: 60 fps
Physical Specifications	Dimensions mm: 211 x 225 Weight g: 5,000
Environmental Specifications	Operating Temp ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: <90
Additional info	Dahua Technology DH-SD65C82C-HS 2 MP HD PTZ dome camera supports intelligent 3D positioning with DH-SD protocol. The camera has the following features: DWDR, day/night(ICR), DNR (2D&3D), auto iris, auto focus, AWB, AGC,BLC, built-in 7/2 alarm in/out.
