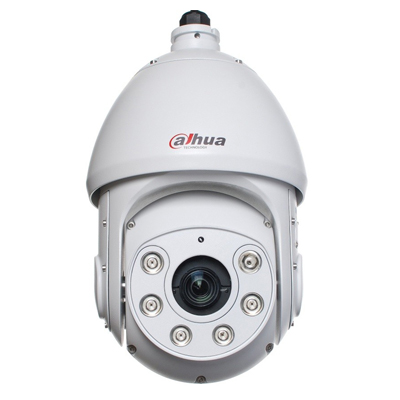

Dahua Technology DH-SD6423E-HN Day/night IR PTZ IP Dome Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-SD6423E-HN Day/night IR PTZ IP Dome Camera

Features:

Make: Dahua Technology
Model code: DH-SD6423E-HN
Chip Inch Size: 1/4
Color Type: Color / Monochrome
Resolution TVL: 704 × 576

Additional info:

Dahua Technology DH-SD6423E-HN is a day/night IR PTZ IP dome camera. The camera features H.264 & MJPEG dual-stream encoding and JPEG image capture. It also features multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS and supports intelligent 3D positioning with DH-SD protocol.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	DH-SD6423E-HN
Chip Inch Size	1/4
Color Type	Color / Monochrome
Resolution TVL	704 × 576
Dome Type	PTZ
Sensitivity lux	0.001
Pan Speed ^o/ sec	0.1 ~ 160
Digital (DSP)	Yes
Tilt Speed ^o/ sec	0.1 ~ 120
Electrical Specifications	Voltage: 24 V AC, 12 V DC Power Consumption: 13 W
Focal length	3.9 ~ 89.7 mm
Presets	255
Compression	H264 / MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/1s ~ 1/100,000s
S/ N (Signal/ Noise) Ratio dB	> 50
Signal Mode	NTSC, PAL
Built-in IR LED	Yes
Video Output	BNC(1.0Vp-p/75 ohms)
Zoom Ratio	x23
Network Properties	Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Image Frame Rate: 30 fps Inclusive DVR/ Web Server: Micro SD
Physical Specifications	Dimensions mm: 202 x 299 Weight g: 5,000
Environmental Specifications	Operating Temp ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: 0 ~ 90 Protection: IP66
Additional info	Dahua Technology DH-SD6423E-HN is a day/night IR PTZ IP dome camera. The camera features H.264 & MJPEG dual-stream encoding and JPEG image capture. It also features multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS and supports intelligent 3D positioning with DH-SD protocol.
