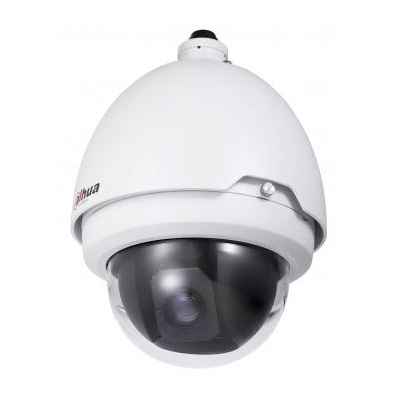

Dahua Technology DH-SD6366E-HN Day/night PTZ Dome Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-SD6366E-HN Day/night PTZ Dome Camera

Features:

Make: Dahua Technology
Model code: DH-SD6366E-HN
Chip Inch Size: 1/4
Color Type: Color / Monochrome
Resolution TVL: 650

Additional info:

Dahua Technology DH-SD6366E-HN PTZ dome camera has a powerful x36 optical zoom. The camera features high resolution of 600 TVL(Color), 650 TVL(B/W), auto iris, auto focus, WDR, AWB, AGC, BLC and EIS. It also supports intelligent 3D positioning with DH-SD protocol.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	DH-SD6366E-HN
Chip Inch Size	1/4
Color Type	Color / Monochrome
Resolution TVL	650
Dome Type	PTZ
Sensitivity lux	0.01
Pan Speed ^o/ sec	0.1 ~ 300
Digital (DSP)	Yes
Tilt Speed ^o/ sec	0.1 ~ 150
Indoor/Outdoor	Indoor/Outdoor
Electrical Specifications	Voltage: 24 V AC Power Consumption: 12 W
Focal length	3.4 ~ 122.4 mm
Presets	255
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3(4) ~ 1/10000 s
S/ N (Signal/ Noise) Ratio dB	>50
Signal Mode	PAL/NTSC
Video Output	BNC(1.0Vp-p/75 ohms)
Zoom Ratio	x36
Network Properties	Control: PTZ
Physical Specifications	Dimensions mm: 222 x 324 Weight g: 5,000
Environmental Specifications	Operating Temp ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: <90 Protection: IP66, IK10
Additional info	Dahua Technology DH-SD6366E-HN PTZ dome camera has a powerful x36 optical zoom. The camera features high resolution of 600 TVL(Color), 650 TVL(B/W), auto iris, auto focus, WDR, AWB, AGC, BLC and EIS. It also supports intelligent 3D positioning with DH-SD protocol.
