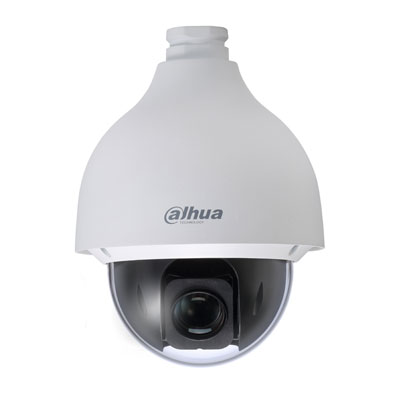

Dahua Technology DH-SD50220T-HN 2 Megapixel PTZ Dome Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-SD50220T-HN 2 Megapixel PTZ Dome Camera

Features:

Make: Dahua Technology
Model code: DH-SD50220T-HN
Series: Ultra-smart Series
Chip Inch Size: 1/3
Color Type: Color / Monochrome

Additional info:

Dahua Technology DH-SD50220T-HN is a 2 megapixel PTZ dome camera that features: Support Triple-streams encoding Max. 25/30fps@1080P(1920x1080) & 50/60fps@720P resolution DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS Max 500°/s pan speed, 360° endless pan rotation Up to 300 presets, 5 auto scan, 8 tour, 5 pattern Built-in 2/1 alarm in/out

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	DH-SD50220T-HN
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	2 MP
HD	Yes
Megapixel	Yes
Dome Type	PTZ
Sensitivity lux	0.005
Pan Speed ^o/ sec	Manual: 0.1 ~ 350
Digital (DSP)	Yes
Tilt Speed ^o/ sec	Manual: 0.1 ~ 250
Electrical Specifications	Voltage: 24 V AC Power Consumption: 13 W
Focal length	4.7 ~ 94
Compression	H.264/MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3 ~ 1/30,000s
S/ N (Signal/ Noise) Ratio dB	>55
Zoom Ratio	x16
Network Properties	Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Control: PTZ Image Frame Rate: 30fps Inclusive DVR/ Web Server: Micro SD
Physical Specifications	Dimensions mm: 186 x 253 Weight g: 2,500
Environmental Specifications	Operating Temp ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: >90 Protection: IP67, IK10
Additional info	Dahua Technology DH-SD50220T-HN is a 2 megapixel PTZ dome camera that features: Support Triple-streams encoding Max. 25/30fps@1080P(1920x1080) & 50/60fps@720P resolution DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS Max 500°/s pan speed, 360° endless pan rotation Up to 300 presets, 5 auto scan, 8 tour, 5 pattern Built-in 2/1 alarm in/out
