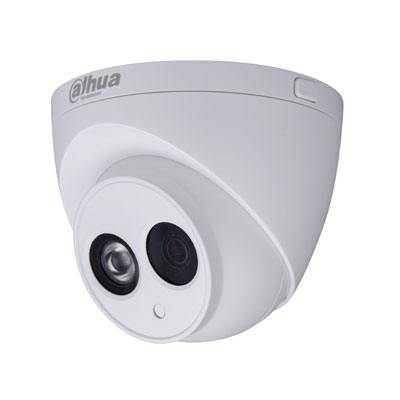

Dahua Technology DH-IPC-HDW4220E(-AS) 2 Megapixel Small IR Dome Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-IPC-HDW4220E(-AS)
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
  • Resolution TVL: 2 MP
Read more
Additional info:

Dahua Technology DH-IPC-HDW4220E(-AS) is a 2 megapixel small IR dome camera that features: Support H.264&MJPEG dual codec 25/30fps@1080P(1920×1080)  Smart Detection supported DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 3.6mm fixed lens (6mm optional) Built-in Mic (only for -AS) Max. IR LEDs Length 50m

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-IPC-HDW4220E(-AS)
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution TVL 2 MP
HD Yes
Megapixel Yes
Dome Type Static
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: 3.7 W
Focal length 3.6mm
Compression H.264/ MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/3(4) ~ 1/100,000s
S/ N (Signal/ Noise) Ratio dB >50
Built-in IR LED Yes
Network Properties Interface: RJ-45 (10/100Base-T)
Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Image Frame Rate: 30fps
Inclusive DVR/ Web Server: Micro SD
Physical Specifications Dimensions mm: 110 × 95
Weight g: 320
Environmental Specifications Operating Temp oC: -30 ~ +60 C (-22 ~ +140 F)
Operating Humidity %: <95
Protection: IP67
Additional info Dahua Technology DH-IPC-HDW4220E(-AS) is a 2 megapixel small IR dome camera that features:
  • Support H.264&MJPEG dual codec
  • 25/30fps@1080P(1920×1080)
  • Smart Detection supported
  • DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm fixed lens (6mm optional)
  • Built-in Mic (only for -AS)
  • Max. IR LEDs Length 50m
