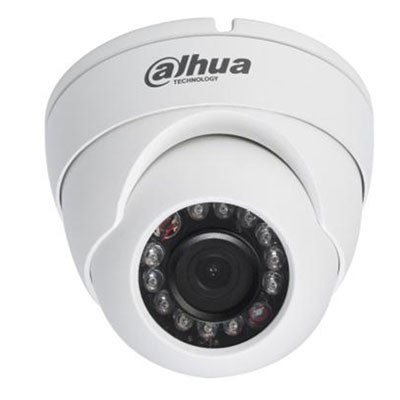

Dahua Technology DH-IPC-HDW4120M 1.3 MP HD Network IR Eyeball Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-IPC-HDW4120M
- Chip Inch Size: 1/3
- Color Type: Color / Monochrome
- Resolution TVL: 1.3 MP
Additional info:
1/3” 1.3Megapixel progressive scan CMOS Support H.264&MJPEG dual codec 25/30fps@1.3M(1280×960) Smart Detection supported DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 3.6mm fixed lens (2.8mm,6mm optional) Max. IR LEDs Length 30m IP67, PoE
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>IP Dome cameras |
| Model code | DH-IPC-HDW4120M |
| Chip Inch Size | 1/3 |
| Color Type | Color / Monochrome |
| Resolution TVL | 1.3 MP |
| HD | Yes |
| Megapixel | Yes |
| Dome Type | Static |
| Sensitivity lux | 0.01 |
| Digital (DSP) | Yes |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 5 W |
| Focal length | 3.6 mm |
| Compression | H.264/H.264B/H.264H/ M JPEG |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/3 (4) ~ 1/100000s |
| S/ N (Signal/ Noise) Ratio dB | >50 |
| Built-in IR LED | Yes |
| Network Properties |
Interface: RJ-45 (10/100Base - T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour , 802.1x |
| Physical Specifications |
Dimensions mm: 93 × 80 Weight g: 300 |
| Environmental Specifications |
Operating Temp oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: < 95 Protection: IP67 |
| Additional info |
|
