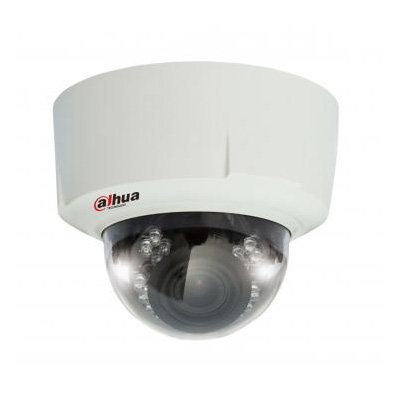

Dahua Technology DH-IPC-HDW3200N 2 MP IR Network Dome Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-IPC-HDW3200N
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
  • Resolution TVL: 2 MP
Read more
Additional info:

Dahua Technology DH-IPC-HDW3200N 2 MP IR network dome camera supports multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS. The camera has the following features: DWDR,Day/Night(ICR), 2DNR, auto iris, AWB, AGC, BLC, 3.3 ~ 12 mm varifocal lens, built-in 1/1 alarm in/out.

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-IPC-HDW3200N
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution TVL 2 MP
Megapixel Yes
Sensitivity lux 0.01
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC
Power Consumption: <6 W
Focal length 3.3 ~ 12 mm
Compression H.264 / MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/4 ~ 1/10,000 s
S/ N (Signal/ Noise) Ratio dB >50
Built-in IR LED Yes
Network Properties Interface: RJ-45 (10/100Base-T)
Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Image Frame Rate: 30 fps
Physical Specifications Dimensions mm: 140 x 114
Weight g: 800
Environmental Specifications Operating Temp oC: -10 ~ +60 C (14 ~ 140 F)
Operating Humidity %: 10 ~ 90
Additional info Dahua Technology DH-IPC-HDW3200N 2 MP IR network dome camera supports multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS. The camera has the following features: DWDR,Day/Night(ICR), 2DNR, auto iris, AWB, AGC, BLC, 3.3 ~ 12 mm varifocal lens, built-in 1/1 alarm in/out.
