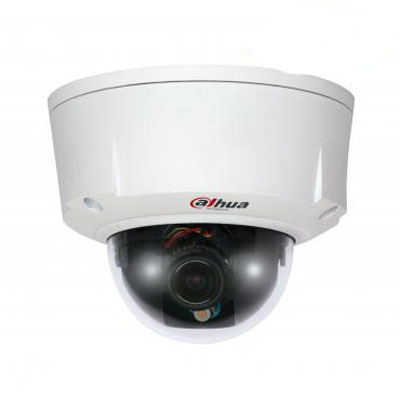

Dahua Technology DH-IPC-HDB5100P 1.3MP Water-proof & Vandal-proof Network Dome Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-IPC-HDB5100P 1.3MP Water-proof & Vandal-proof Network Dome Camera

Features:

Make: Dahua Technology
Model code: DH-IPC-HDB5100P
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution TVL: 1.3 MP

Additional info:

Dahua Technology DH-IPC-HDB5100P is a 1.3MP water-proof & vandal-proof network dome camera. It features H.264 & MJPEG dual-stream encoding and multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	DH-IPC-HDB5100P
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	1.3 MP
Megapixel	Yes
Sensitivity lux	0.005
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC Power Consumption: <3W
Focal length	2.7 ~ 9
Compression	H.264/ MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3~1/10000
S/ N (Signal/ Noise) Ratio dB	>50
Video Output	1 channel BNC(1.0Vp-p, 75ohms)
Network Properties	Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Image Frame Rate: 30 fps
Physical Specifications	Dimensions mm: 151 x 119 Weight g: 1,250
Environmental Specifications	Operating Temp ^oC: -20 ~ +60 C (-4 ~ +140 F) Operating Humidity %: >90 Protection: IP66
Additional info	Dahua Technology DH-IPC-HDB5100P is a 1.3MP water-proof & vandal-proof network dome camera. It features H.264 & MJPEG dual-stream encoding and multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS.
