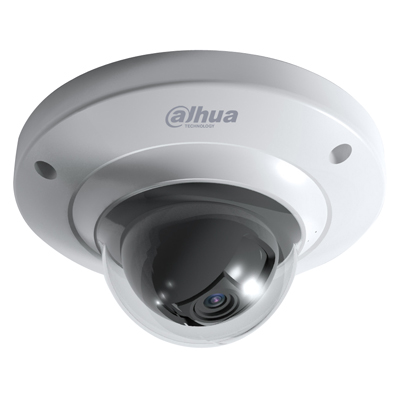

Dahua Technology DH-IPC-HDB4100C-M Day/night 1.3 Megapixel HD Network Mini Dome Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-IPC-HDB4100C-M Day/night 1.3 Megapixel HD Network Mini Dome Camera

Features:

Make: Dahua Technology
Model code: DH-IPC-HDB4100C-M
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution TVL: 1.3 MP

Additional info:

The Dahua Technology DH-IPC-HDB4100C-M is 1/3-inch color/monochrome high definition IP mini dome camera with multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	DH-IPC-HDB4100C-M
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	1.3 MP
HD	Yes
Megapixel	Yes
Dome Type	Static
Sensitivity lux	0.1
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC Power Consumption: 2.5 W
Focal length	3.6 mm
Compression	H.264/MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3(4) ~ 1/10000s
S/ N (Signal/ Noise) Ratio dB	>50
Network Properties	Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Image Frame Rate: 30 fps
Physical Specifications	Dimensions mm: 110 x 54 Weight g: 250
Environmental Specifications	Operating Temp ^oC: -30 ~ +60 C (-22 ~ 140 F) Operating Humidity %: 0 ~ 95 Protection: IK10
Additional info	The Dahua Technology DH-IPC-HDB4100C-M is 1/3-inch color/monochrome high definition IP mini dome camera with multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS.
