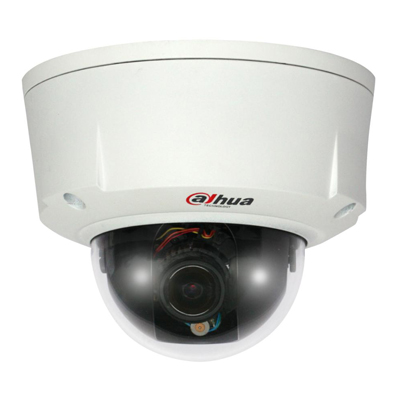

Dahua Technology DH-IPC-HDB3100N 1.3MP Day/night IP Dome Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-IPC-HDB3100N 1.3MP Day/night IP Dome Camera

Features:

Make: Dahua Technology
Model code: DH-IPC-HDB3100N
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution TVL: 1.3 MP

Additional info:

Dahua Technology DH-IPC-HDB3100N is a 1.3MP day/night IP dome camera. The camera features H.264 & MJPEG dual-stream encoding, multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS.It also features 2DNR, Auto iris, AWB, AGC, and BLC.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	DH-IPC-HDB3100N
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	1.3 MP
Megapixel	Yes
Sensitivity lux	0.005
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC Power Consumption: < 6 W
Focal length	2.8 ~ 12 mm
Compression	H264 / MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/4 ~ 1/10000 s
S/ N (Signal/ Noise) Ratio dB	> 50
Signal Mode	NTSC
Network Properties	Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Image Frame Rate: 30 fps Inclusive DVR/ Web Server: Micro SD
Physical Specifications	Dimensions mm: 151 x 119 Weight g: 1,100
Environmental Specifications	Operating Temp ^oC: -10 ~ +60 C (14 ~ 140 F) Operating Humidity %: 10 ~ 90 Protection: IP66, IK10
Additional info	Dahua Technology DH-IPC-HDB3100N is a 1.3MP day/night IP dome camera. The camera features H.264 & MJPEG dual-stream encoding, multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS.It also features 2DNR, Auto iris, AWB, AGC, and BLC.
