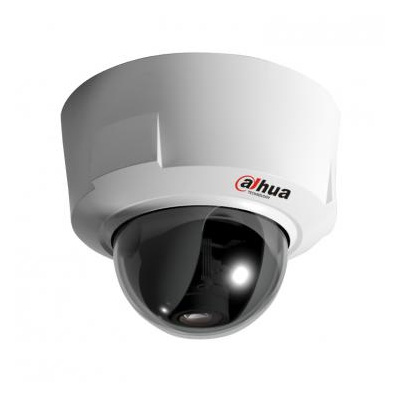

Dahua Technology DH-IPC-HD3200N 2 MP Network Dome Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-IPC-HD3200N 2 MP Network Dome Camera

Features:

Make: Dahua Technology
Model code: DH-IPC-HD3200N
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution TVL: 2 MP

Additional info:

Dahua Technology DH-IPC-HD3200N 2 MP network dome camera supports multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS. The camera has the following features: DWDR, day/night(ICR), 2DNR, auto iris, AWB, AGC, BLC, 3.3 ~ 12 mm varifocal lens, built-in 1/1 alarm in/out, max 25/30 fps@1080p.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	DH-IPC-HD3200N
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	2 MP
Megapixel	Yes
Sensitivity lux	0.01
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC Power Consumption: <6 W
Focal length	3.3 ~ 12 mm
Compression	H.264 / MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/4 ~ 1/10,000 s
S/ N (Signal/ Noise) Ratio dB	>50
Network Properties	Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Image Frame Rate: 30 fps
Physical Specifications	Dimensions mm: 140 x 114 Weight g: 800
Environmental Specifications	Operating Temp ^oC: -10 ~ +60 C (14 ~ 140 F) Operating Humidity %: 10 ~ 90
Additional info	Dahua Technology DH-IPC-HD3200N 2 MP network dome camera supports multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS. The camera has the following features: DWDR, day/night(ICR), 2DNR, auto iris, AWB, AGC, BLC, 3.3 ~ 12 mm varifocal lens, built-in 1/1 alarm in/out, max 25/30 fps@1080p.
